RTK Visual Guidiance kit's components

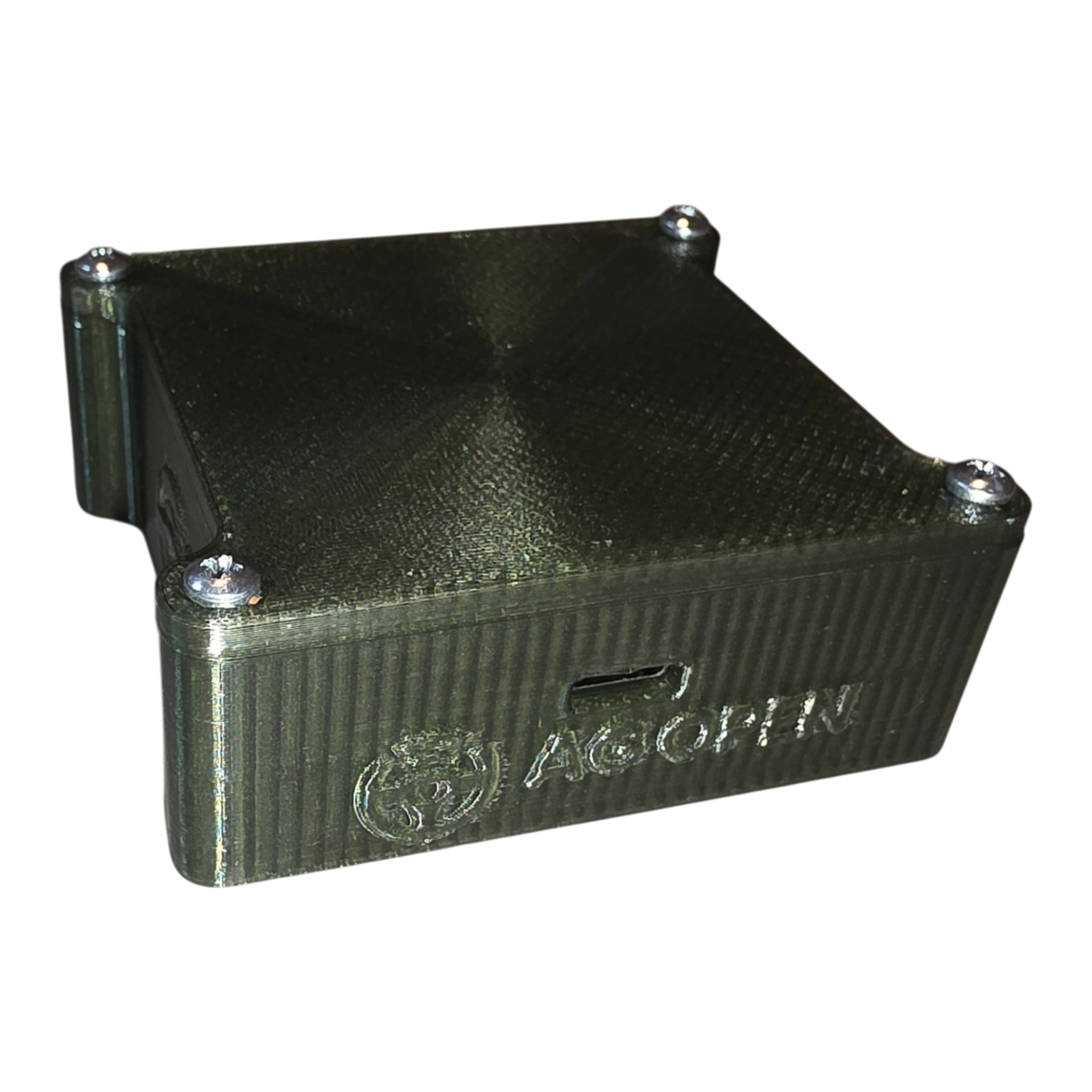

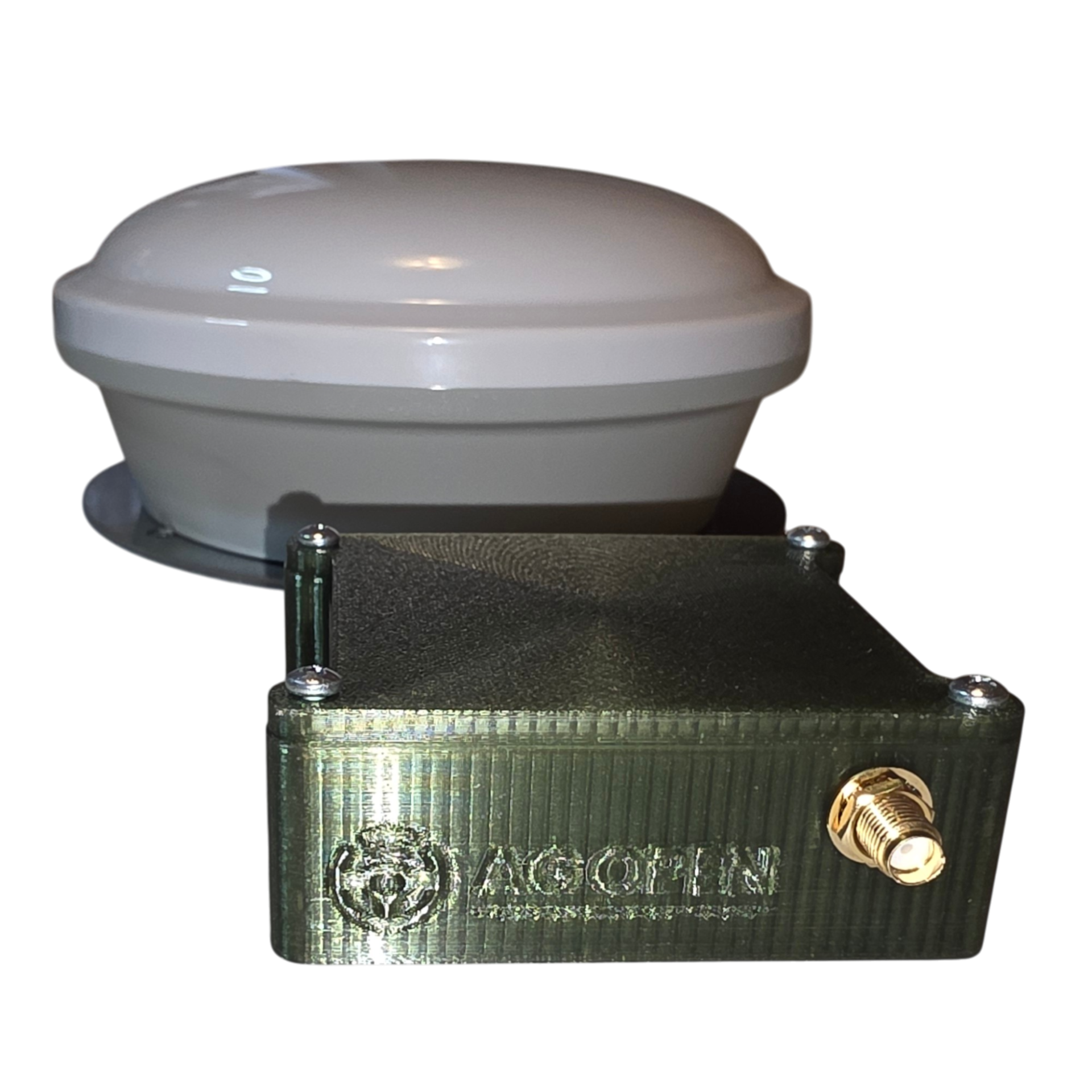

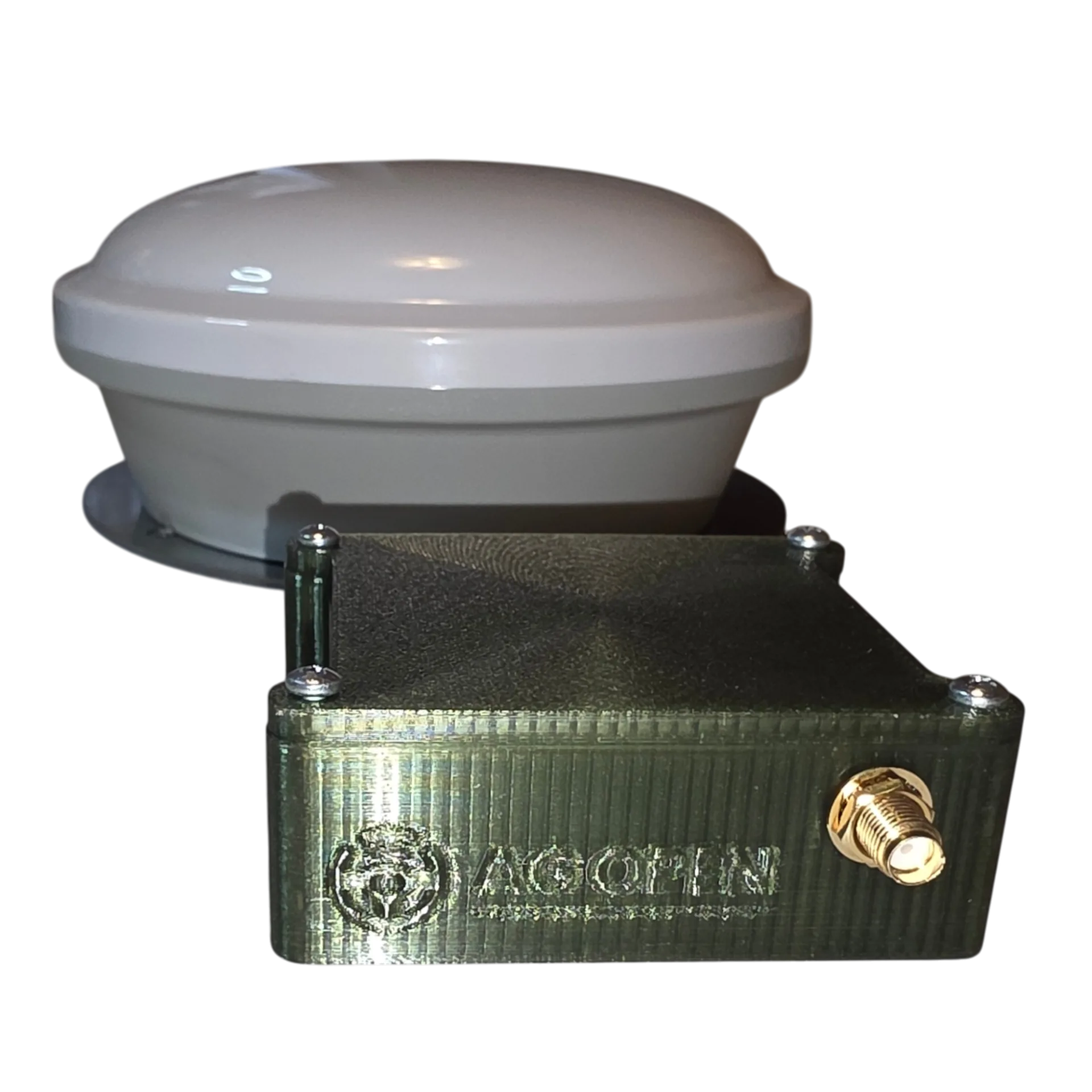

1. RTK module for visual drive with antenna + base plate

1. RTK module  with antenna + base plate

High precision module with latest featutes like Galileo HAS. supports four GNSS systems.

Only works with RTK module.
More details

2. Tablet and holder of your choice

2. Tablet and holder of your choice

The durable command center for your AgOpenGPS system, built to withstand the harshest cabin environments.

FAQ

What level of accuracy can I expect from this kit?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

Does the kit include the steering motor and the steering wheel?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

What is the difference between the three tablet options?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

Is the AgOpenGPS software already installed on the tablet?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

Why do I need to select a shaft adapter?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

Do I need to buy the Wheel Angle Sensor (WAS) separately?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

How does the tablet connect to the rest of the system?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

Is this kit compatible with my tractor brand?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

Can I use my existing RTK base station with this kit?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

Is the wiring harness protected against harsh environments?

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Optio, neque qui velit. Magni dolorum quidem ipsam eligendi, totam, facilis laudantium cum accusamus ullam voluptatibus commodi numquam, error, est. Ea, consequatur.

this a Lightbar Guidance or line guide or visual guide system.

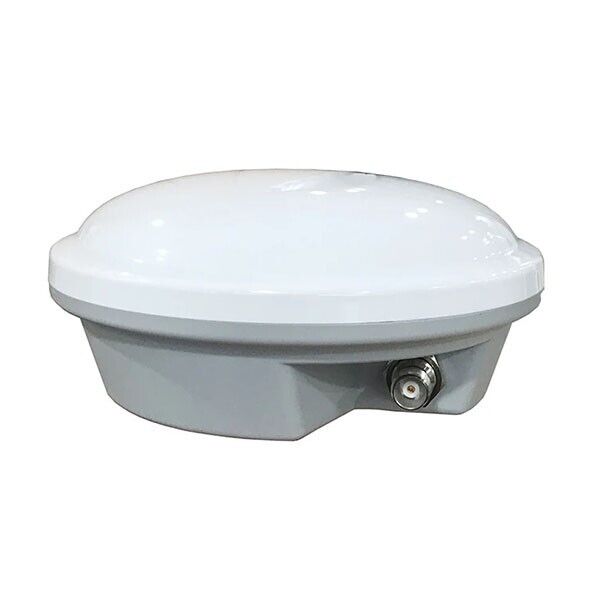

A proven product from Unicore. Includes the UM982 RTK GPS module and the three band antenna for centimetre-precise positioning and navigation.

Equipped with feet (spike line), configured for AgOpenGPS. With 15 cm diameter galvanized antenna backing plate, which is highly recommended for good quality reception.
The tablet, RTK receiver and the antenna are tested  together.

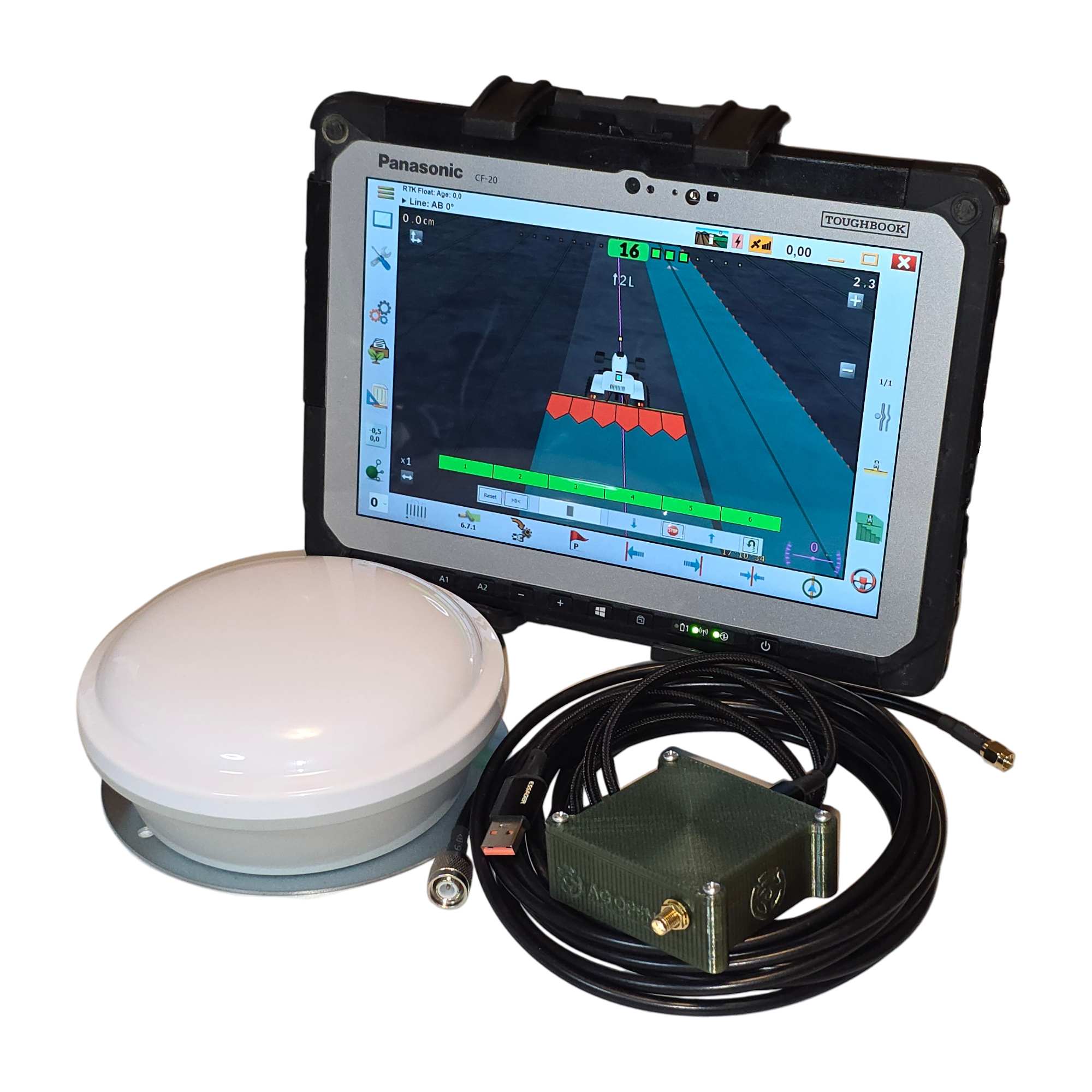

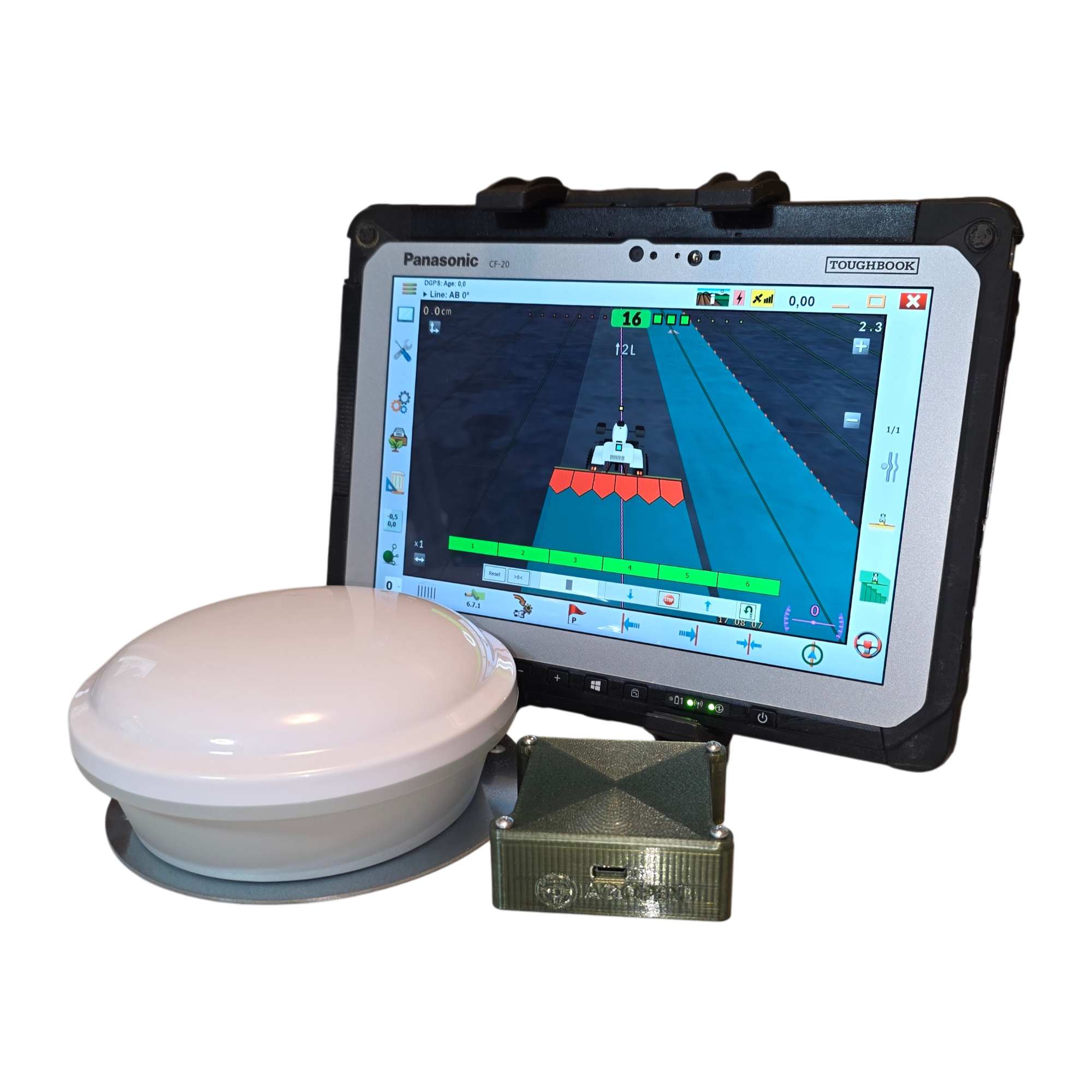

RTK Lightbar Guidance kit AgOpenGPS

From $920.9 + VAT

  • RTK precision ±2.5 cm - no subscription
  • Install in 15 minutes
  • Fully reusable for Autos Steer upgrade

Configure your kit

Selecting the tablet is optional for your configuration.

Tablet with industrial holder & charger

Compare tablets

Tablet with industrial holder & charger

Compare tablets

Summary

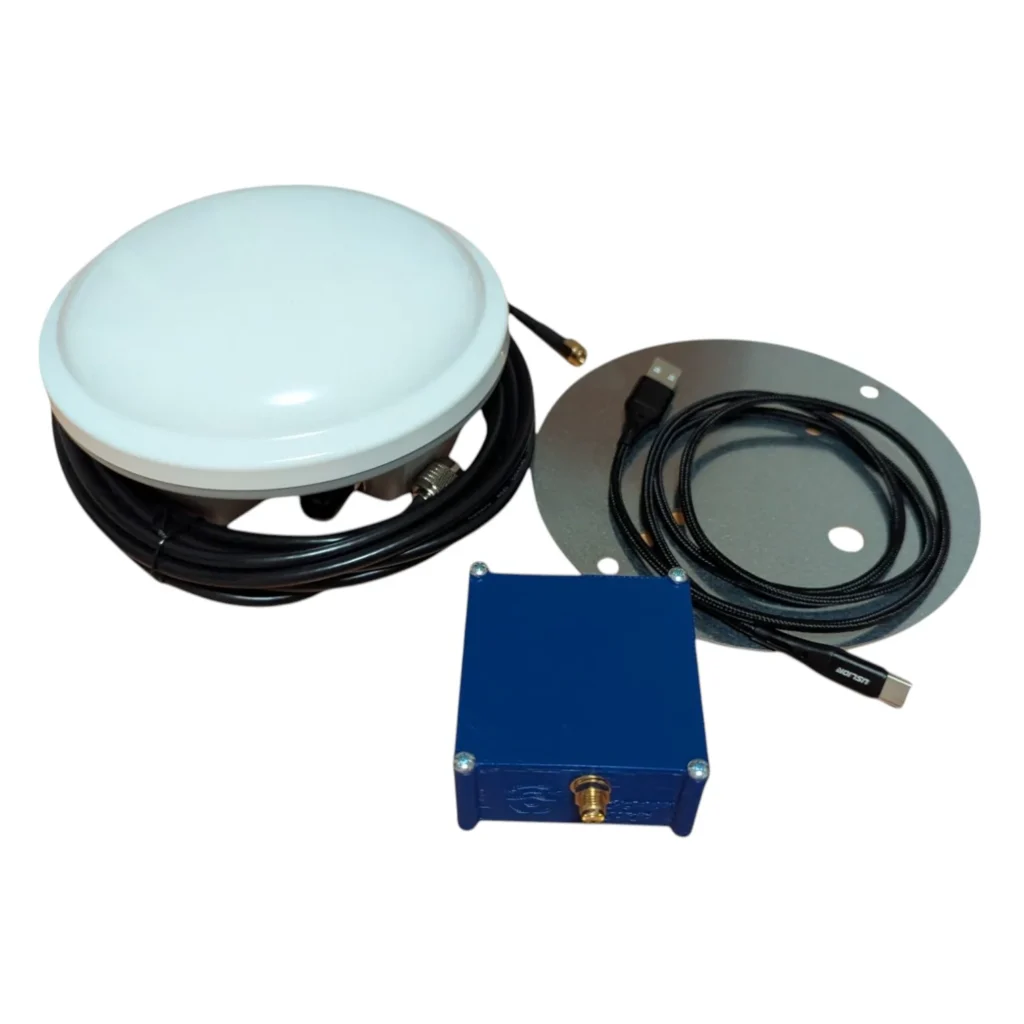

RTK module for visual drive with antenna + base plate
$401.4 + VAT
Panasonic CF-20, refurbished, BUILT-IN LAN, dust and impact resistant tablet, charger, LAN +industrial holder - Industrial holder
$519.5 + VAT
Dell 5290 refurbished tablet, charger, LAN + industrial holder - industrial tablet holder
$495.9 + VAT
IPC4 NEW rugged tablet, 4G LTE, built-in LAN, charger, LAN + industrial holder - industrial tablet holder
$826.4 + VAT
4G Router
$106.3 + VAT
Quantity

Subtotal:

From $920.9 + VAT

Extend your kit

4G Router

Help

4G Router

Help

Related products

Products
Resources
Frequently asked questions
Knowledge base
About Us
Log in
Contact

Compare tablets

Internet connection: This is used to receive the correction signal required to achieve 2.5 cm (RTK) accuracy. For machines used by family members, it is practical to provide internet access via a smartphone hotspot (eliminating extra data costs and administration).

An Ethernet adapter is required for AgOpenGPS control. This can be handled with an external USB-to-Ethernet adapter. While this setup is usually very stable, it does introduce more potential points of failure.

Features
Panasonic CF-20
Our choice
Dell 5290
IPC4 Rugged
Condition
Refurbished
Refurbished
New
Screen Size
10.1" (HD)
11.6" (FHD)
10.1" (FHD)
Internet
External source
LAN via Adapter
Built-in LAN + 4G LTE
ETH Adapter
Built-in
LAN via Adapter
Built-in
Durability
Military Grade
Office++
Dust and shock proof
AgOpenGPS
All three tablets come tested and pre-installed with AgOpenGPS, so they are ready to use out of the box!

When do I need a 4G router?

Add an external 4G router to your kit if:

  • Tablet has no LTE modem: Your tablet lacks a built-in SIM slot, and you don’t want to rely on your phone’s mobile hotspot.
  • Weak signal coverage: The external antennas provide a stable internet connection in remote fields where standard mobile phones often lose reception.
  • Section controller setup: You are using an extra control board for automatic section control or sprayer management. This setup utilizes the router’s Ethernet hub function, where a third Ethernet cable is connected directly to the SC to ensure seamless communication between the devices.

Adapters for different tractors

To ensure you select the correct adapter, the most reliable method is to remove the steering wheel and measure the diameter of the splined shaft, as shown in the image.

In most cases, the spline count is 36; therefore, the diameter is the determining factor. Based on our experience, dimensions are consistent across certain brands.

Models for which the data in the table below are highly reliable:

  • John Deere and newer machines from the CNH Group: A+

  • Claas and Massey Ferguson: N

Adapter Model Tractor Brands & Models Adapters teeth no. Adapters size

A+
  • JOHN DEERE      (ALL)

CNH group newer:

  • CASE                    (PUMA, Maxxum, 5150, 110)
  • NEW HOLLAND    (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304, T5.120, TC56)
  • STEYER
  • LANDINI                (6-115H, Powerfarm 95)
  • DEUTZ                   (Agrofarm 420 y2012)
  • LAMBORGHINI     (874-90 Turbo)
  • REANULT              (French, 11404)
  • ZOMMLION          (2604)
  • ARMATRAC
  • YTO                       (smaller ones to 90hp)
36
21.8-22.1

D
  • FENDT                (ALL)
  • CASE                  (CVX 1170)
  • DEUTZ                (5110 , 5105, Agrotron XXX)
  • KUBOTA             (M7-153)
  • LANDINI              (Vision 100)
  • LAMBORGHINI
36
20.4

K
  • BELARUS MTZ            (824, 1204)
36
17.8

N
  • MASSEY FERGUSON  (6475, 5413, 204, S1304-C, 1004, 1104, 1204, 1304, 8690, 6713S)
  • CLAAS                          (Axion y2008, 2204, 440)
  • MCCORMICK               (MC120, XTX185, ZTX280, MTX)
  • CASE                             (PUMA145, 185CVX, MX 110)
  • VALTRA                         (N154)
  • STEYR                            (6125)
36

15.8
(conical)

B
  • LOVOL              (1004, 900, 1654)
  • WORLD            (1304, 2204, 604, 904, 1404, 1604)
  • FOTON             (904, 700, 750, LX800, 754, 90, LF904, 1204)
  • YTO                   (120/130hp)
36
18.2

W
  • DEUTZ           (904, 454, 604, 704, 804, 1204, 1604, 1654)
  • LOVOL        （1304, 900, 904, 654, 1204, 1504, 800）
  • FOTON          (small ones)
36
18.5

F
  • VALTRA       (2104, 191, 1904, 1504, 8158, T183, T171, N143)
  • ZETOR
  • KIROVETS    (K-734)
  • BATEMAN
  • SANDS
  • KNIGHT        (SP sprayers)
  • HARDI          (Alpha)

single key
24.5

NH40

older ones:

  • NEW HOLLAND     (1304, TS100, T5050)
  • CASE                      (MXM)
40
17.7

T
  • KUBOTA                 (594)
  • YANMAR                (AC21W, rice transplanter)
18
15.45

G

RARE:

  • MASSEY FERGUSON              (4365, old ones)
  • CASE & NEW HOLLAND        (old, manufactured in the US)
36
15.6

C
  • CLAAS             (Lexion)
  • TUCANO
  • AVERO
  • JAGUAR
single key (conical)
23.33-25.4

BENZ- 72S
  • MERCEDES      (Unimog)
72
23.5
