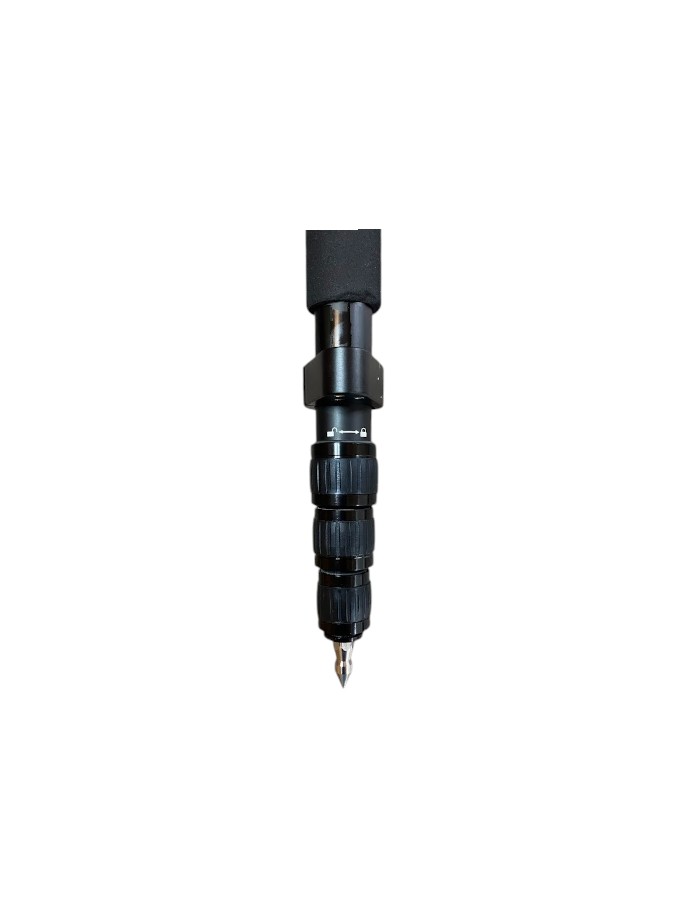

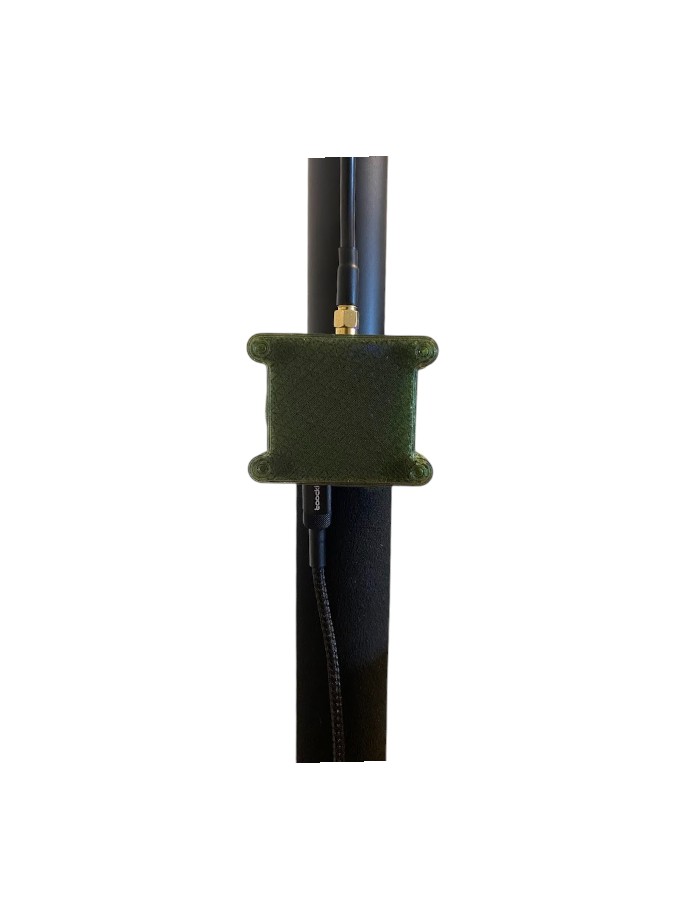

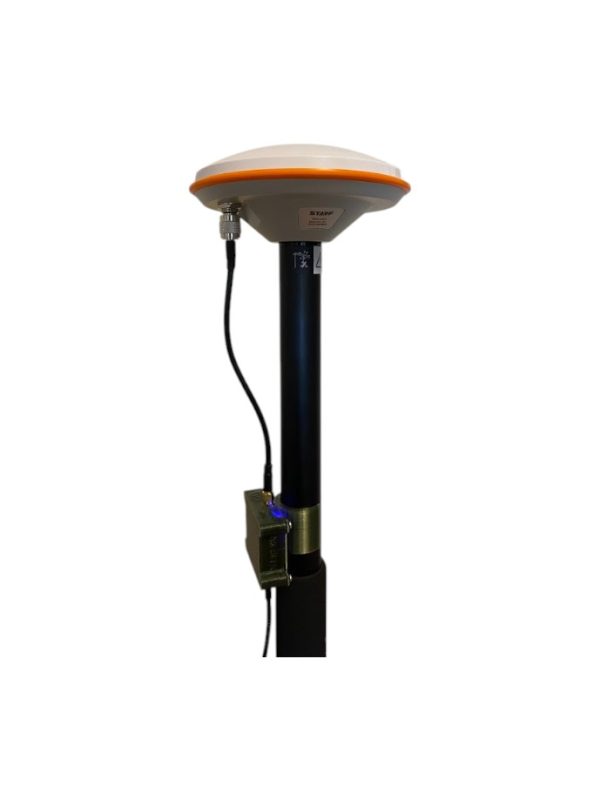

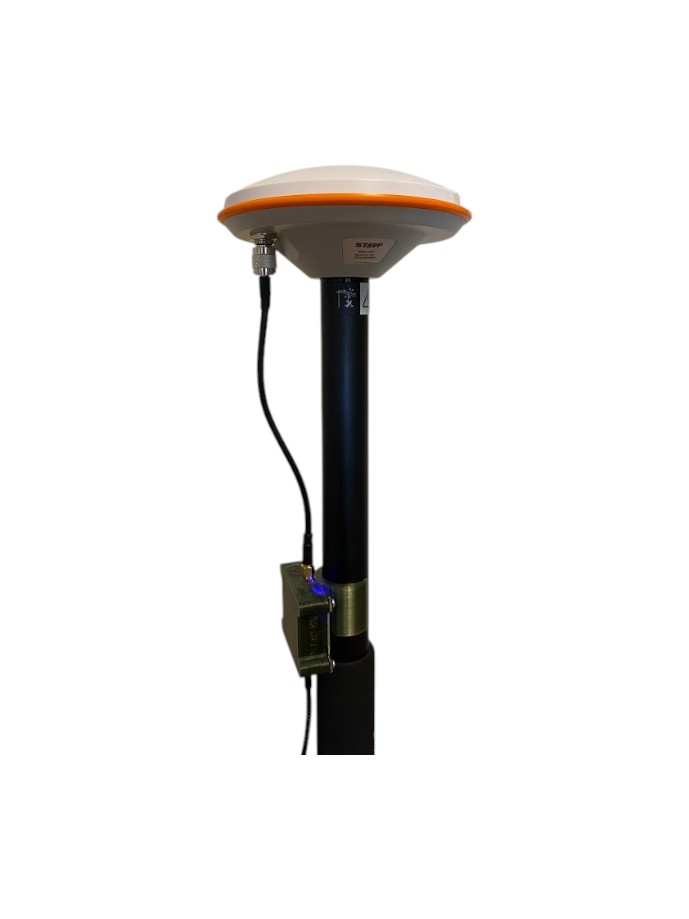

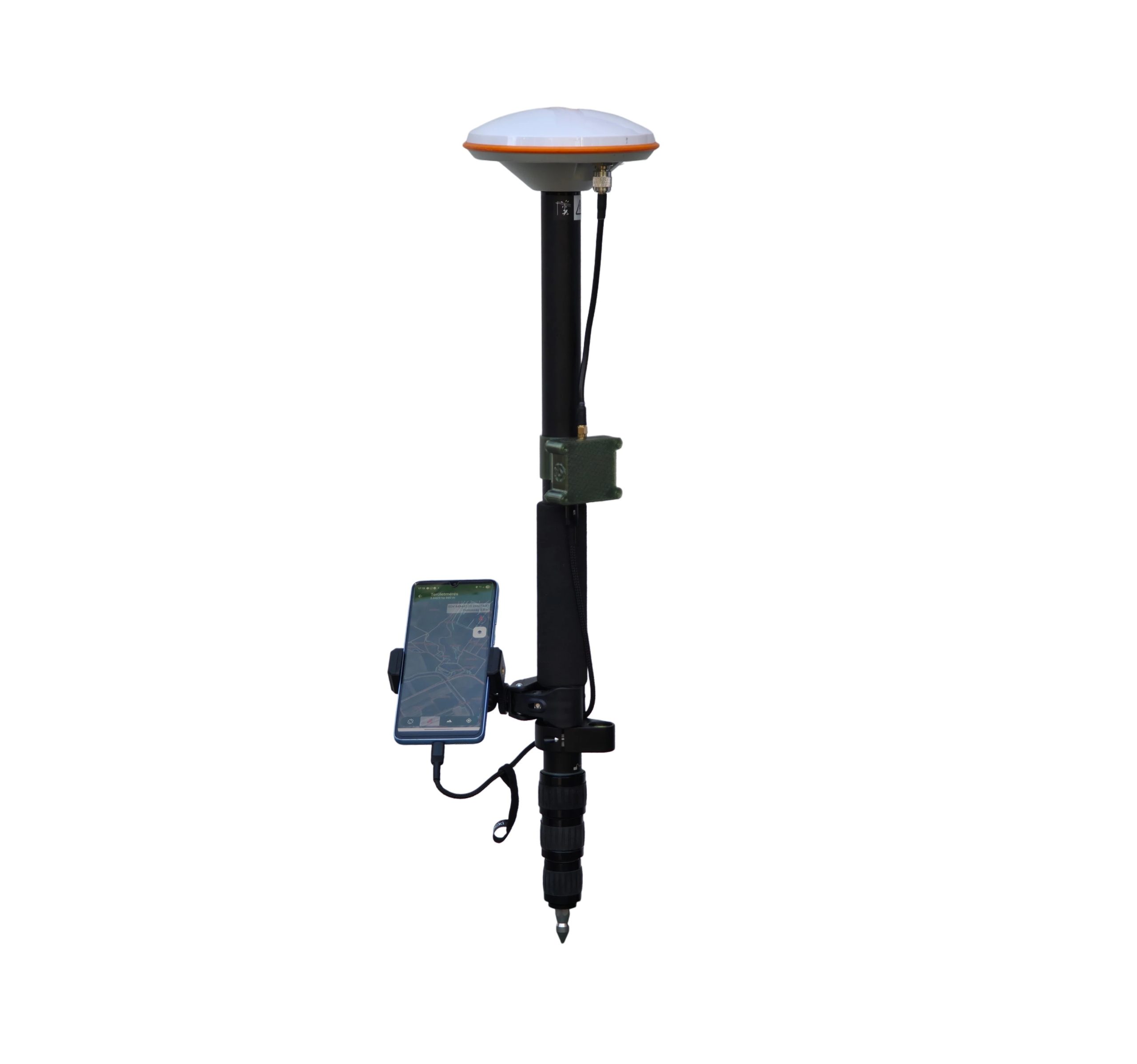

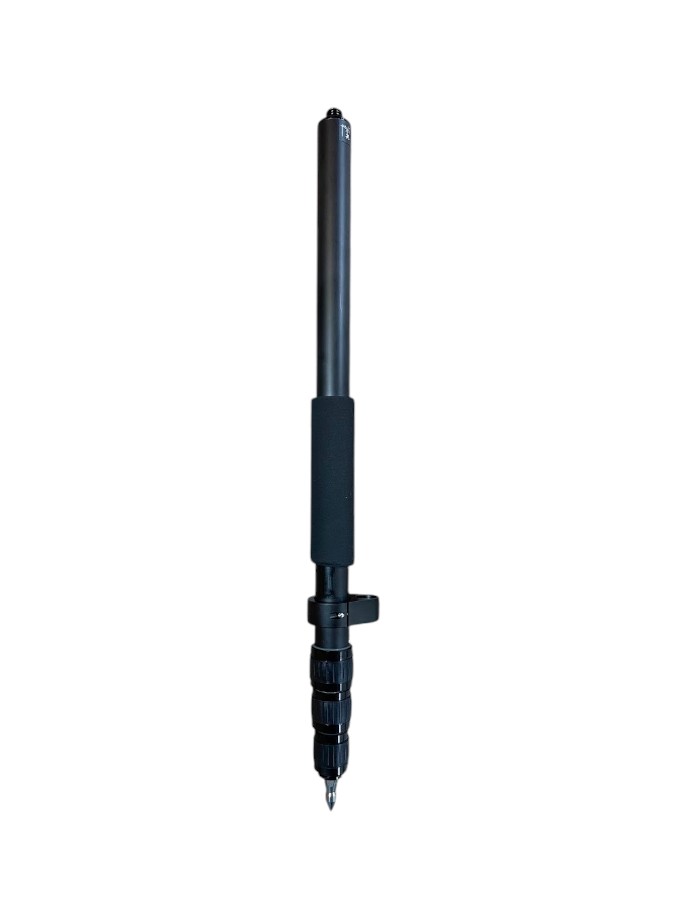

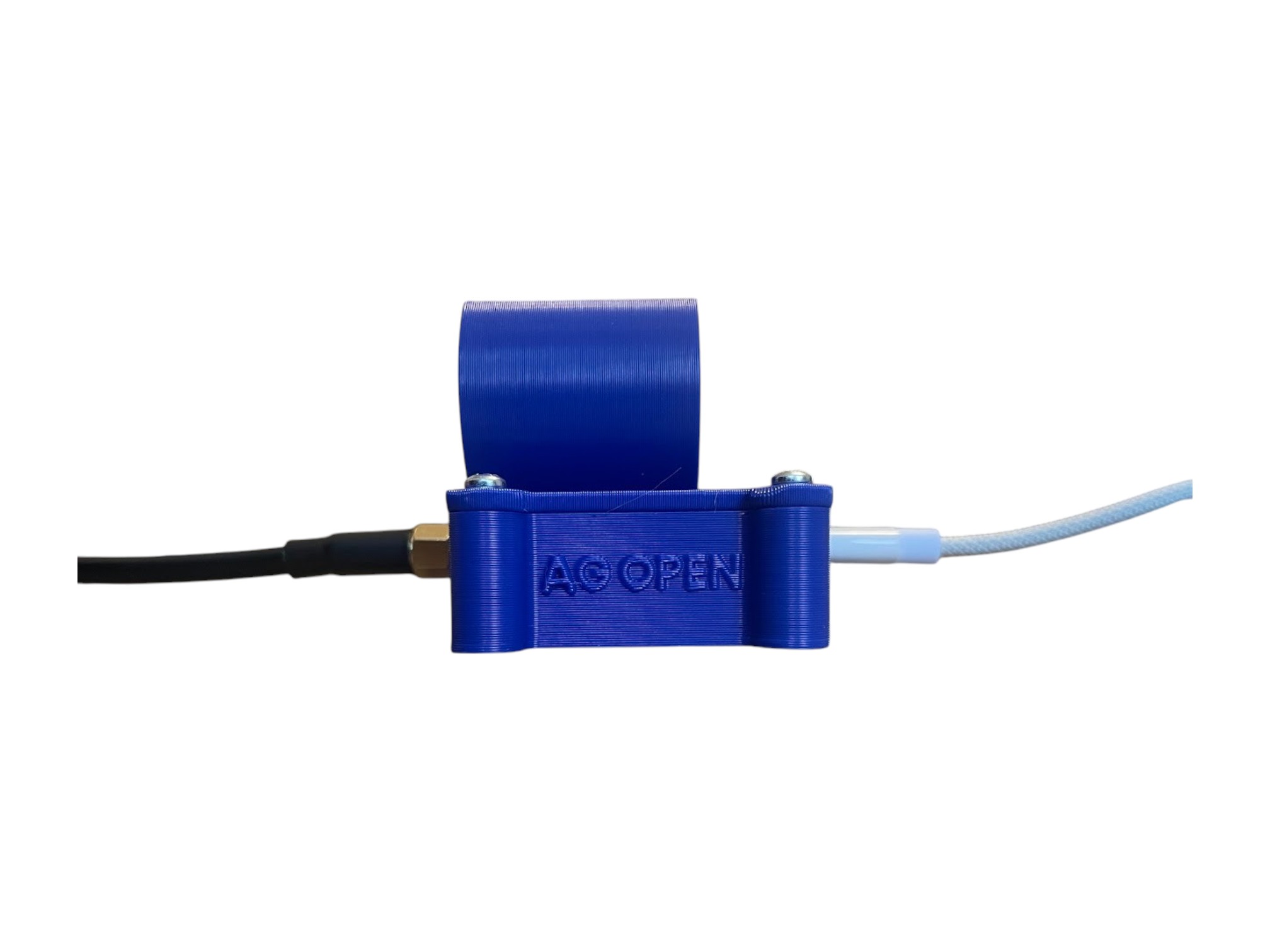

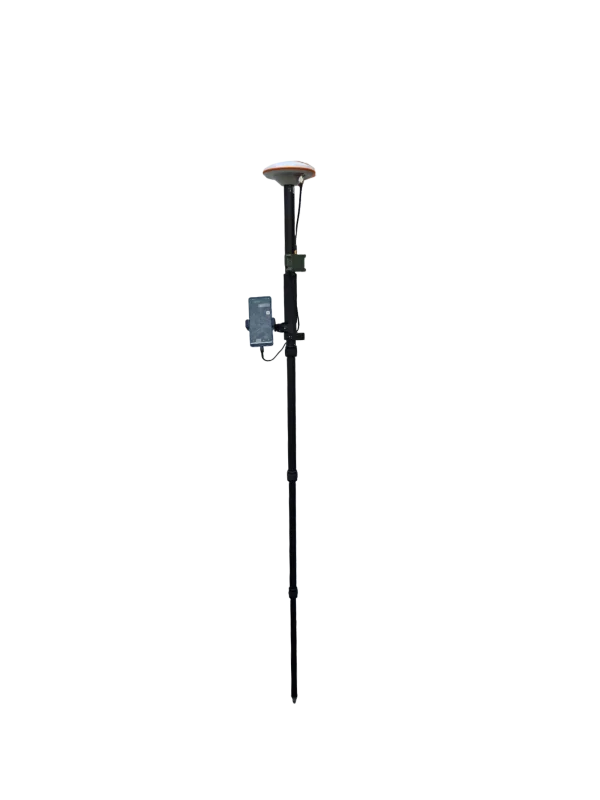

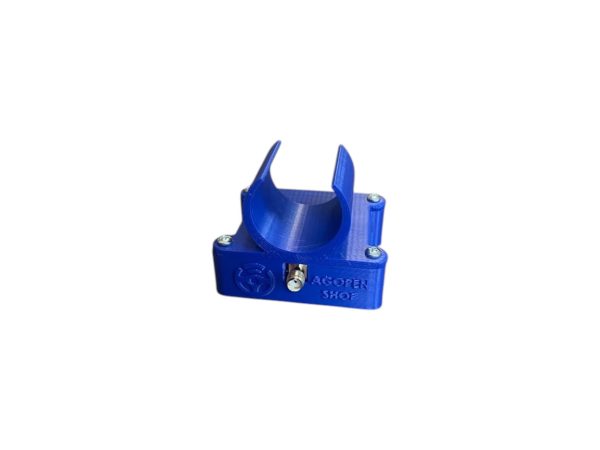

Land Surveyor made for easy and fast usage.
$590.6 + VAT

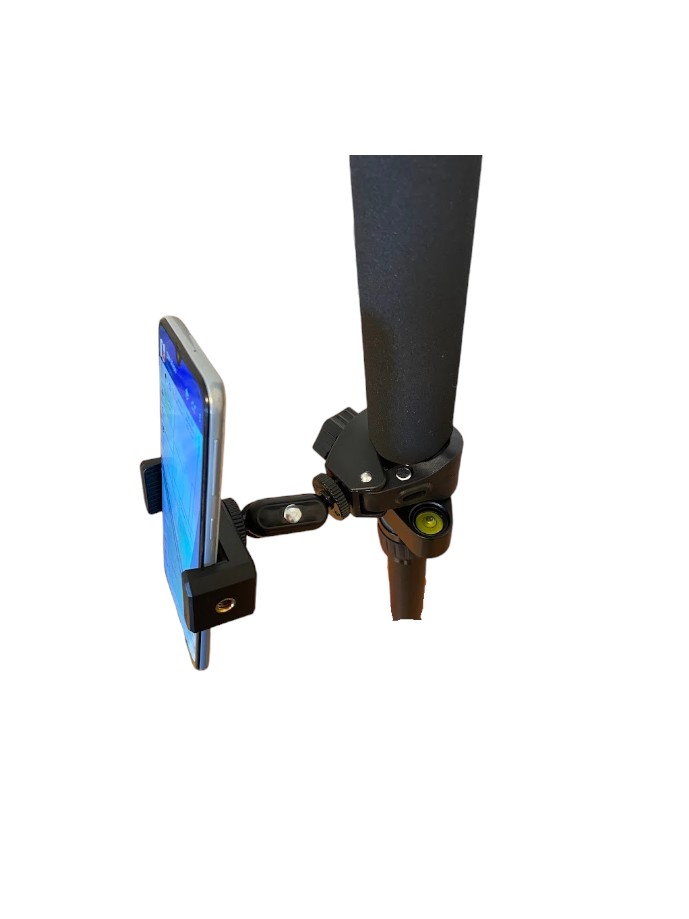

The Phone does not belongs to the product, it works with your own device.
The product includes:
It can be connected to Android and Windows devices via the USB connector on the unit.
What apps can I use to activate and use land surveyor AgOpenGPS?
TopoExpress
Can handle EOV coordinates, recognizes the receiver via USB and takes the correction using the built-in NTRIP client. The free version is not suitable for measuring large areas, but it is suitable for point-to-point navigation and point recording.
Download from: https://topolynx.hu/software.html
Connect: Settings -> GNSS -> USB , then press the connect button twice (the first time you give access, the second time it connects).
SWMaps
With english instructions: https://www.ardusimple.com/how-to-use-ardusimple-products-with-android-smartphones-tablets/
Video tutorial to install SWMaps (in hungarian):
| Weight | 1.95 kg |
|---|---|
| RTK module | With RTK module, Without RTK module |
To ensure you select the correct adapter, the most reliable method is to remove the steering wheel and measure the diameter of the splined shaft, as shown in the image.
In most cases, the spline count is 36; therefore, the diameter is the determining factor. Based on our experience, dimensions are consistent across certain brands.
Models for which the data in the table below are highly reliable:
John Deere and newer machines from the CNH Group: A+
Claas and Massey Ferguson: N
| Adapter Model | Tractor Brands & Models | Adapters teeth no. | Adapters size |
|---|---|---|---|
|
A+ |
CNH group newer:
|
36 |
21.8-22.1 |
|
D |
|
36 |
20.4 |
|
K |
|
36 |
17.8 |
|
N |
|
36 |
15.8 |
|
B |
|
36 |
18.2 |
|
W |
|
36 |
18.5 |
|
F |
|
single key |
24.5 |
|
NH40 |
older ones:
|
40 |
17.7 |
|
T |
|
18 |
15.45 |
|
G |
RARE:
|
36 |
15.6 |
|
C |
|
single key (conical) |
23.33-25.4 |
|
BENZ- 72S |
|
72 |
23.5 |
Add an external 4G router to your kit if:
