TM171 Tilt Sensor (IMU) with Adapter, Preconfigured

$116.0 + VAT

Category

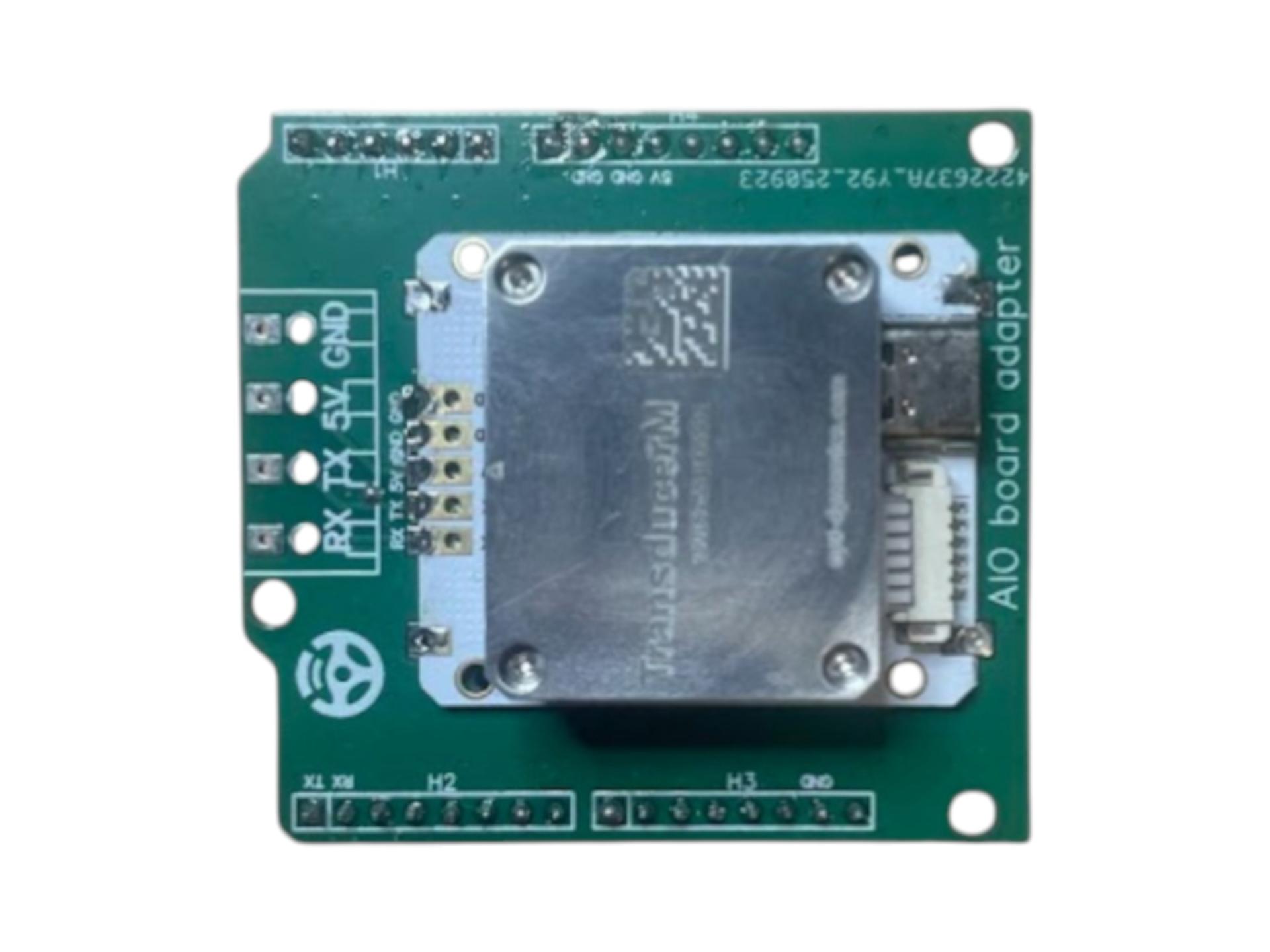

TM171 Tilt Sensor (IMU) with Adapter, Preconfigured

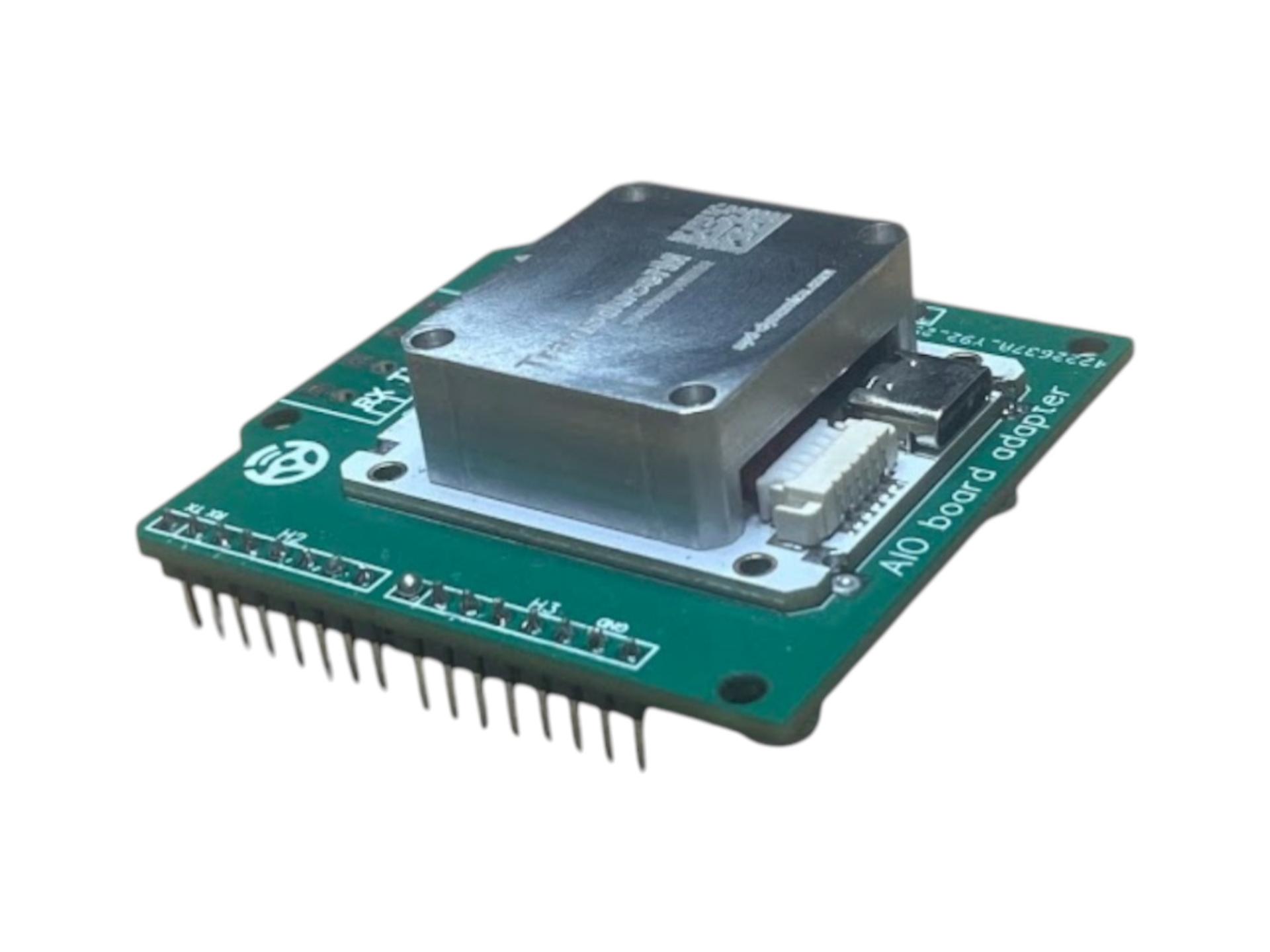

TM171 Tilt Sensor (IMU) with Adapter, Preconfigured - Image 2

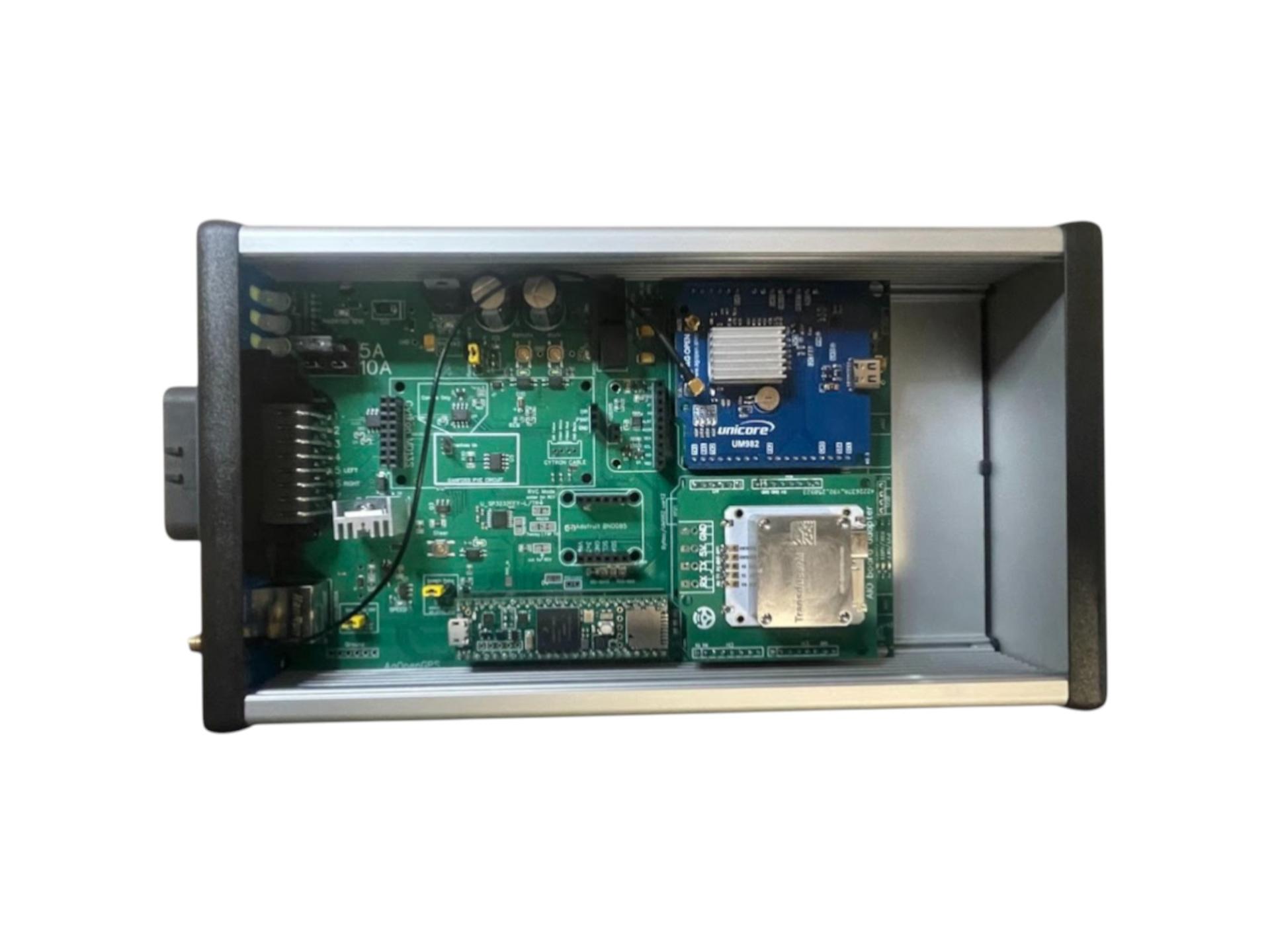

TM171 Tilt Sensor (IMU) with Adapter, Preconfigured - Image 3

Description

This sensor is designed to replace the IMU (BNO085) tilt sensor distributed until January 2026. It must be installed directly inside the controller box.
You will experience a significant improvement in the following cases:
  • High-clearance / high-built machinery
  • Machines with suspended cabs
  • High-precision operations on highly uneven terrain

Important Technical Requirements:
Operation requires a firmware update on the controller’s processor board. A Micro USB cable is required for this process. We provide a short guide and the necessary software so you can complete the update independently.

You can find the instructions here: agopen.shop/t

Additional information

Weight 0.2 kg

Related products

Products
Resources
Frequently asked questions
Knowledge base
About Us
Log in
Contact

Adapters for different tractors

To ensure you select the correct adapter, the most reliable method is to remove the steering wheel and measure the diameter of the splined shaft, as shown in the image.

In most cases, the spline count is 36; therefore, the diameter is the determining factor. Based on our experience, dimensions are consistent across certain brands.

Models for which the data in the table below are highly reliable:

  • John Deere and newer machines from the CNH Group: A+

  • Claas and Massey Ferguson: N

Adapter Model Tractor Brands & Models Adapters teeth no. Adapters size

A+
  • JOHN DEERE      (ALL)

CNH group newer:

  • CASE                    (PUMA, Maxxum, 5150, 110)
  • NEW HOLLAND    (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304, T5.120, TC56)
  • STEYER
  • LANDINI                (6-115H, Powerfarm 95)
  • DEUTZ                   (Agrofarm 420 y2012)
  • LAMBORGHINI     (874-90 Turbo)
  • REANULT              (French, 11404)
  • ZOMMLION          (2604)
  • ARMATRAC
  • YTO                       (smaller ones to 90hp)
36
21.8-22.1

D
  • FENDT                (ALL)
  • CASE                  (CVX 1170)
  • DEUTZ                (5110 , 5105, Agrotron XXX)
  • KUBOTA             (M7-153)
  • LANDINI              (Vision 100)
  • LAMBORGHINI
36
20.4

K
  • BELARUS MTZ            (824, 1204)
36
17.8

N
  • MASSEY FERGUSON  (6475, 5413, 204, S1304-C, 1004, 1104, 1204, 1304, 8690, 6713S)
  • CLAAS                          (Axion y2008, 2204, 440)
  • MCCORMICK               (MC120, XTX185, ZTX280, MTX)
  • CASE                             (PUMA145, 185CVX, MX 110)
  • VALTRA                         (N154)
  • STEYR                            (6125)
36

15.8
(conical)

B
  • LOVOL              (1004, 900, 1654)
  • WORLD            (1304, 2204, 604, 904, 1404, 1604)
  • FOTON             (904, 700, 750, LX800, 754, 90, LF904, 1204)
  • YTO                   (120/130hp)
36
18.2

W
  • DEUTZ           (904, 454, 604, 704, 804, 1204, 1604, 1654)
  • LOVOL        （1304, 900, 904, 654, 1204, 1504, 800）
  • FOTON          (small ones)
36
18.5

F
  • VALTRA       (2104, 191, 1904, 1504, 8158, T183, T171, N143)
  • ZETOR
  • KIROVETS    (K-734)
  • BATEMAN
  • SANDS
  • KNIGHT        (SP sprayers)
  • HARDI          (Alpha)

single key
24.5

NH40

older ones:

  • NEW HOLLAND     (1304, TS100, T5050)
  • CASE                      (MXM)
40
17.7

T
  • KUBOTA                 (594)
  • YANMAR                (AC21W, rice transplanter)
18
15.45

G

RARE:

  • MASSEY FERGUSON              (4365, old ones)
  • CASE & NEW HOLLAND        (old, manufactured in the US)
36
15.6

C
  • CLAAS             (Lexion)
  • TUCANO
  • AVERO
  • JAGUAR
single key (conical)
23.33-25.4

BENZ- 72S
  • MERCEDES      (Unimog)
72
23.5

When do I need a 4G router?

Add an external 4G router to your kit if:

  • Tablet has no LTE modem: Your tablet lacks a built-in SIM slot, and you don’t want to rely on your phone’s mobile hotspot.
  • Weak signal coverage: The external antennas provide a stable internet connection in remote fields where standard mobile phones often lose reception.
  • Section controller setup: You are using an extra control board for automatic section control or sprayer management. This setup utilizes the router’s Ethernet hub function, where a third Ethernet cable is connected directly to the SC to ensure seamless communication between the devices.
