RTK Lightbar Guidance kit AgOpenGPS

From: $396.7 + VAT

Category
sorvezető_háttér_nélküli_kicsi

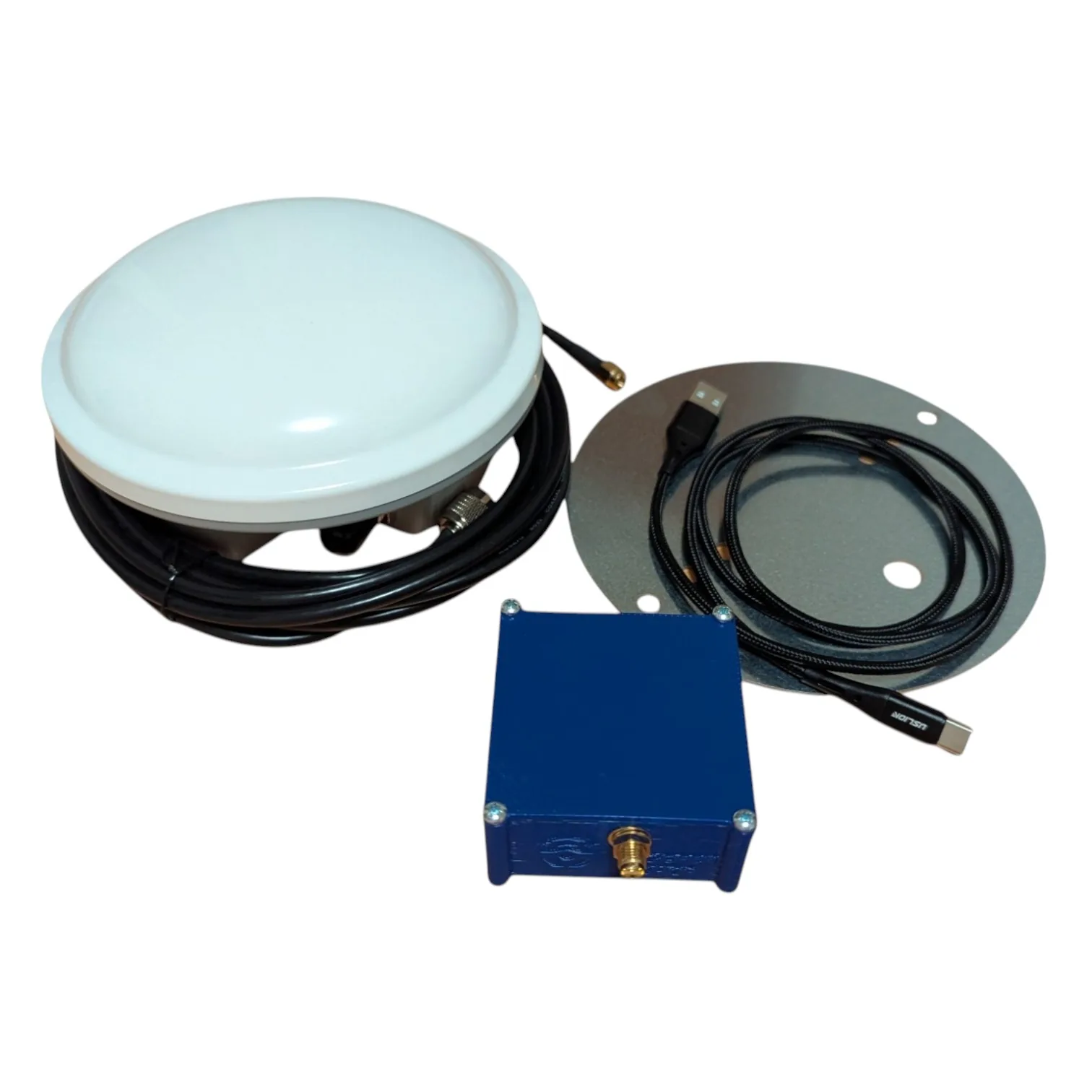

RTK module for visual drive with antenna + base plate

$396.7 + VAT
CF-20_kicsi_hatter_nelkul-Photoroom

Panasonic CF-20, refurbished, BUILT-IN LAN, dust and impact resistant tablet, charger, LAN +industrial holder

tarto_dell_hatter_nelkul-Photoroom

Dell 5290 refurbished tablet, charger, LAN + industrial holder

4563867-18338854

IPC4 NEW rugged tablet, 4G LTE, built-in LAN, charger, LAN + industrial holder

tappancs_closeup_2_hatter_nelkul-Photoroom

Vacuum mounting base

$58.3 + VAT
RTK Lightbar Guidance kit AgOpenGPS
RTK Lightbar Guidance kit AgOpenGPS - Image 2
RTK Lightbar Guidance kit AgOpenGPS - Image 3
RTK Lightbar Guidance kit AgOpenGPS - Image 4

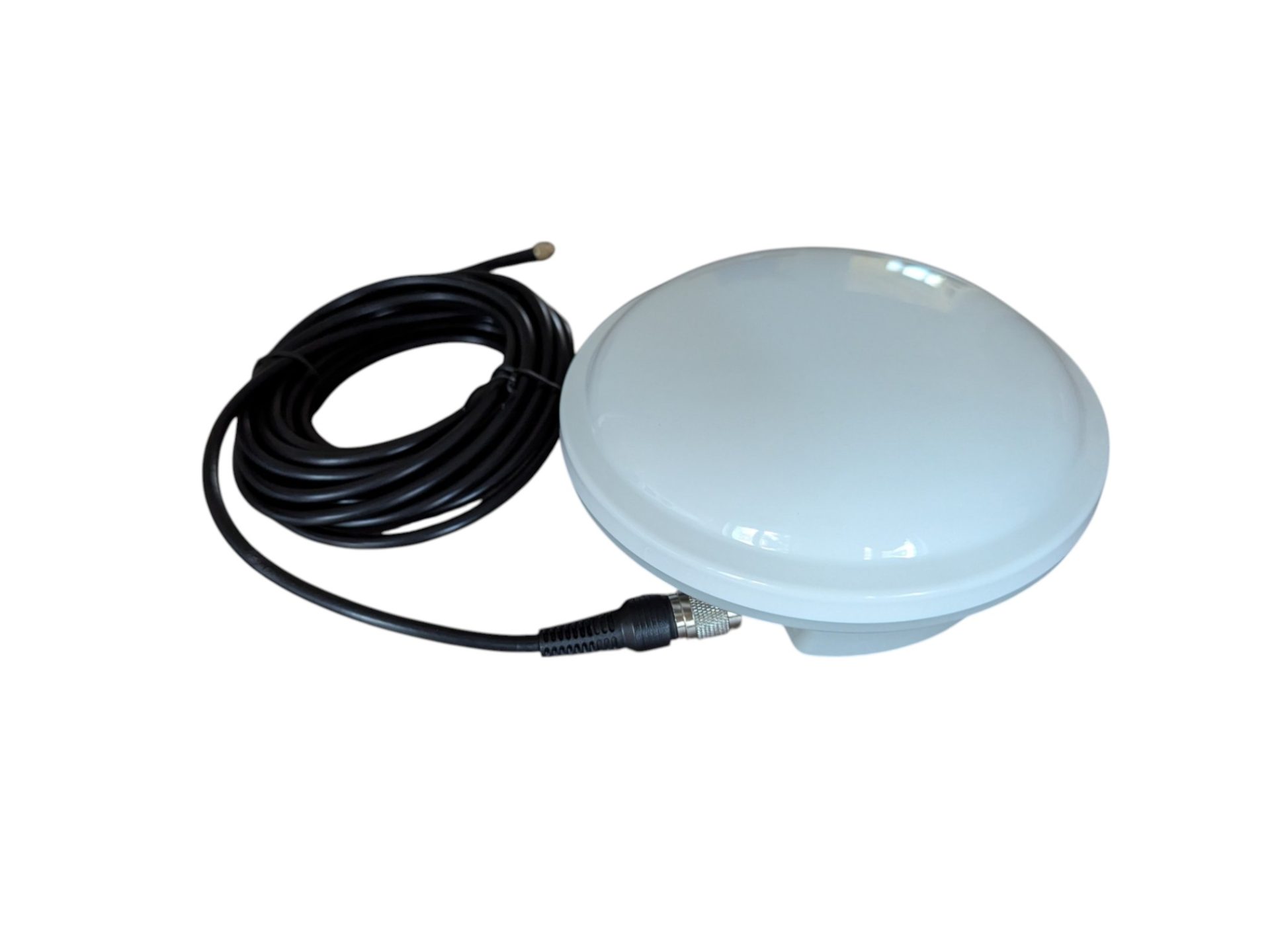

RTK Lightbar Guidance kit AgOpenGPS - Image 5

Description

The AgOpenGPS guidance system is the modular foundation of precision farming. Easily upgradable: every component can be utilized for setting up a full automatic steering system.

▶️ Setup and User Guide

Precision Parameters

  • RTK Fix Accuracy: Achieve 2.5 cm return accuracy with internet-based correction (NTRIP).
  • Galileo HAS Technology: Provides 20 cm absolute accuracy without internet or external correction, utilizing the European High Accuracy Service (HAS) satellite features.
  • Update Rate: 20 Hz refresh rate (20 position updates per second) for smooth, real-time visualization.

Technical Specifications

  • GNSS Architecture: Triple-frequency (L1, L2, L5) Unicore receiver, managing all major satellite systems (GPS, GLONASS, Galileo, BeiDou) simultaneously.
  • Tilt Compensation: By default, mounting the antenna on the hood is recommended, which physically minimizes lateral position errors on uneven terrain.
  • Interface: Plug & Play connection. Data transfer and power for the RTK receiver are handled via a single USB cable connected to the tablet.

Why choose the AgOpen system?

  • No License or Correction Fees: No annual subscriptions or feature unlock costs. The latest updates are always available.
  • Modular Design: Start with visual guidance and upgrade your machine to automatic steering or section control at your own pace.
  • Professional Background: Open-source but supported by professional hardware, with dedicated technical support.

Additional information

RTK module for visual drive with antenna + base plate

Weight 0.6 kg
Variation

"integrated to Control Box", "in a separate box for visual guidance"

Panasonic CF-20, refurbished, BUILT-IN LAN, dust and impact resistant tablet, charger, LAN +industrial holder

Weight N/A

Dell 5290 refurbished tablet, charger, LAN + industrial holder

Weight N/A
Holder

industrial tablet holder

IPC4 NEW rugged tablet, 4G LTE, built-in LAN, charger, LAN + industrial holder

Weight N/A
holder

industrial tablet holder
Products
Resources
Frequently asked questions
Knowledge base
About Us
Log in
Contact

Adapters for different tractors

To ensure you select the correct adapter, the most reliable method is to remove the steering wheel and measure the diameter of the splined shaft, as shown in the image.

In most cases, the spline count is 36; therefore, the diameter is the determining factor. Based on our experience, dimensions are consistent across certain brands.

Models for which the data in the table below are highly reliable:

  • John Deere and newer machines from the CNH Group: A+

  • Claas and Massey Ferguson: N

Adapter Model Tractor Brands & Models Adapters teeth no. Adapters size

A+
  • JOHN DEERE      (ALL)

CNH group newer:

  • CASE                    (PUMA, Maxxum, 5150, 110)
  • NEW HOLLAND    (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304, T5.120, TC56)
  • STEYER
  • LANDINI                (6-115H, Powerfarm 95)
  • DEUTZ                   (Agrofarm 420 y2012)
  • LAMBORGHINI     (874-90 Turbo)
  • REANULT              (French, 11404)
  • ZOMMLION          (2604)
  • ARMATRAC
  • YTO                       (smaller ones to 90hp)
36
21.8-22.1

D
  • FENDT                (ALL)
  • CASE                  (CVX 1170)
  • DEUTZ                (5110 , 5105, Agrotron XXX)
  • KUBOTA             (M7-153)
  • LANDINI              (Vision 100)
  • LAMBORGHINI
36
20.4

K
  • BELARUS MTZ            (824, 1204)
36
17.8

N
  • MASSEY FERGUSON  (6475, 5413, 204, S1304-C, 1004, 1104, 1204, 1304, 8690, 6713S)
  • CLAAS                          (Axion y2008, 2204, 440)
  • MCCORMICK               (MC120, XTX185, ZTX280, MTX)
  • CASE                             (PUMA145, 185CVX, MX 110)
  • VALTRA                         (N154)
  • STEYR                            (6125)
36

15.8
(conical)

B
  • LOVOL              (1004, 900, 1654)
  • WORLD            (1304, 2204, 604, 904, 1404, 1604)
  • FOTON             (904, 700, 750, LX800, 754, 90, LF904, 1204)
  • YTO                   (120/130hp)
36
18.2

W
  • DEUTZ           (904, 454, 604, 704, 804, 1204, 1604, 1654)
  • LOVOL        （1304, 900, 904, 654, 1204, 1504, 800）
  • FOTON          (small ones)
36
18.5

F
  • VALTRA       (2104, 191, 1904, 1504, 8158, T183, T171, N143)
  • ZETOR
  • KIROVETS    (K-734)
  • BATEMAN
  • SANDS
  • KNIGHT        (SP sprayers)
  • HARDI          (Alpha)

single key
24.5

NH40

older ones:

  • NEW HOLLAND     (1304, TS100, T5050)
  • CASE                      (MXM)
40
17.7

T
  • KUBOTA                 (594)
  • YANMAR                (AC21W, rice transplanter)
18
15.45

G

RARE:

  • MASSEY FERGUSON              (4365, old ones)
  • CASE & NEW HOLLAND        (old, manufactured in the US)
36
15.6

C
  • CLAAS             (Lexion)
  • TUCANO
  • AVERO
  • JAGUAR
single key (conical)
23.33-25.4

BENZ- 72S
  • MERCEDES      (Unimog)
72
23.5

When do I need a 4G router?

Add an external 4G router to your kit if:

  • Tablet has no LTE modem: Your tablet lacks a built-in SIM slot, and you don’t want to rely on your phone’s mobile hotspot.
  • Weak signal coverage: The external antennas provide a stable internet connection in remote fields where standard mobile phones often lose reception.
  • Section controller setup: You are using an extra control board for automatic section control or sprayer management. This setup utilizes the router’s Ethernet hub function, where a third Ethernet cable is connected directly to the SC to ensure seamless communication between the devices.
