Section controller

500.0  + VAT

Category

Description

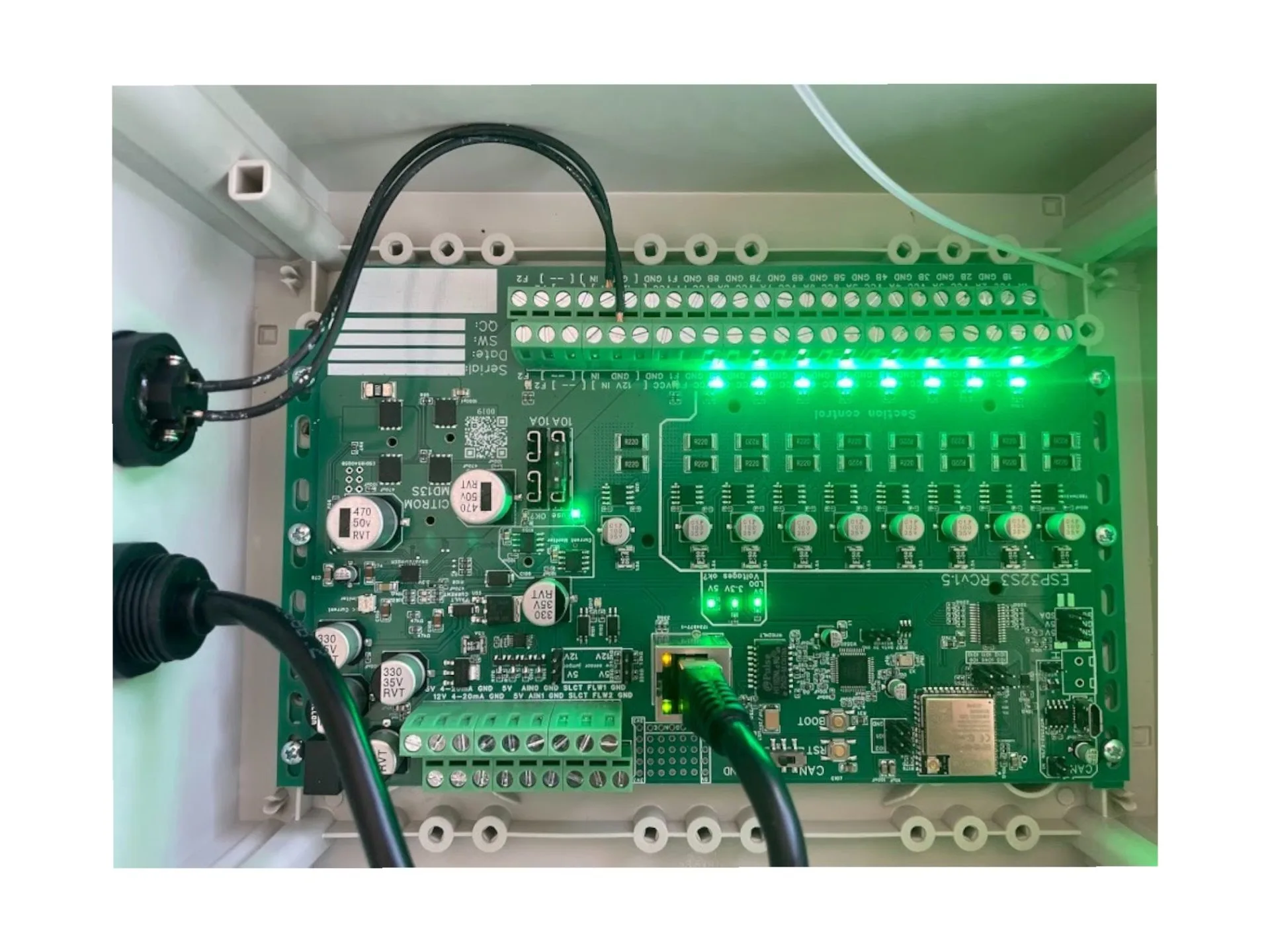

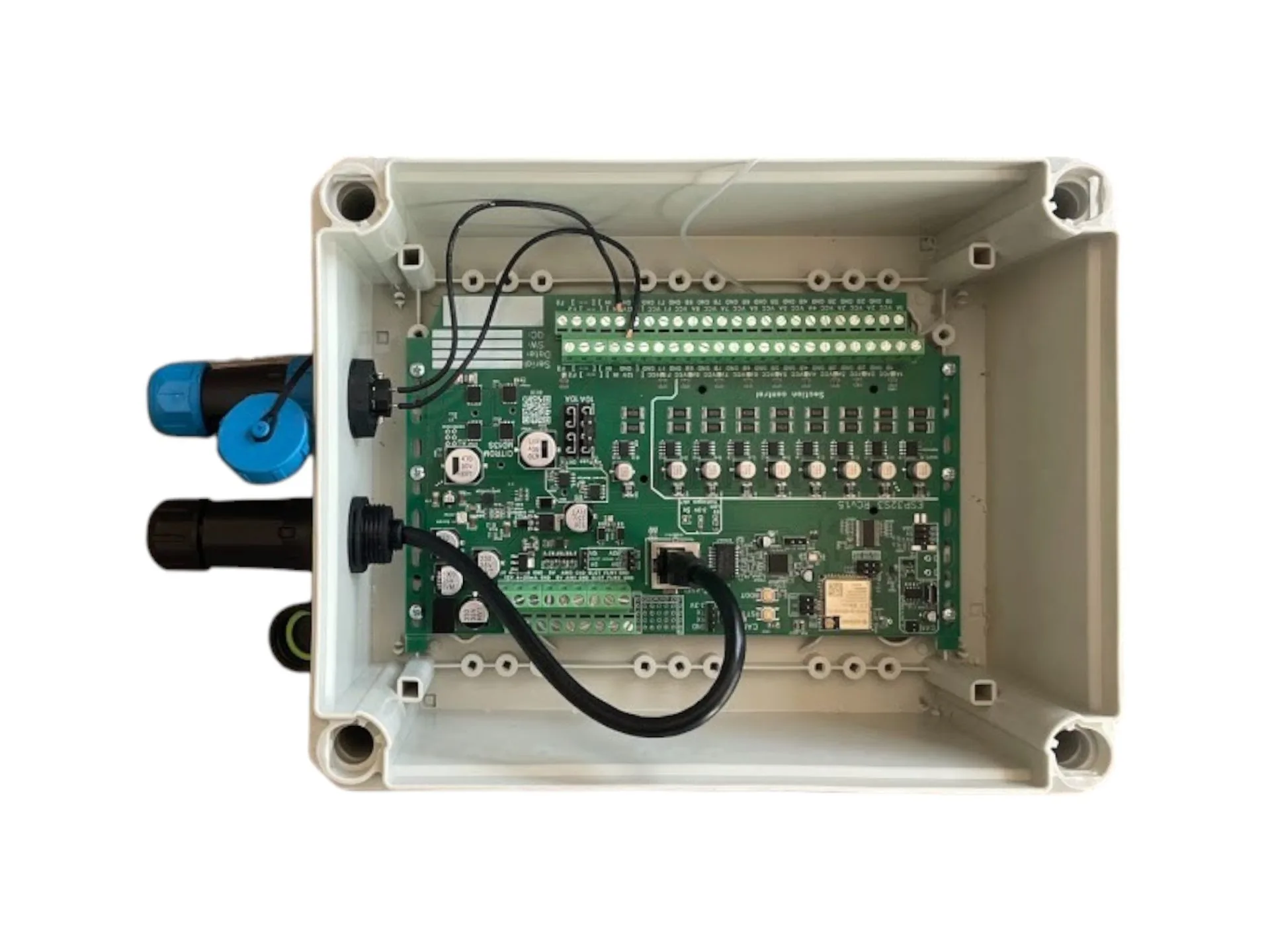

Capable of controlling up to 8 sections, with a load of 3A per section. It is recommended to mount it on the device. For the power supply and LAN connection, waterproof connectors are built in.

Also suitable for 7-stage, proportional flow full sprinkler control.

The unit comes configured. Section control, main shut-off and pressure valve set up are the responsibility of the customer. For cable entry, we recommend a glow plug block coupling. For assembly, remote consultation is provided.

Features:

  • watertight box

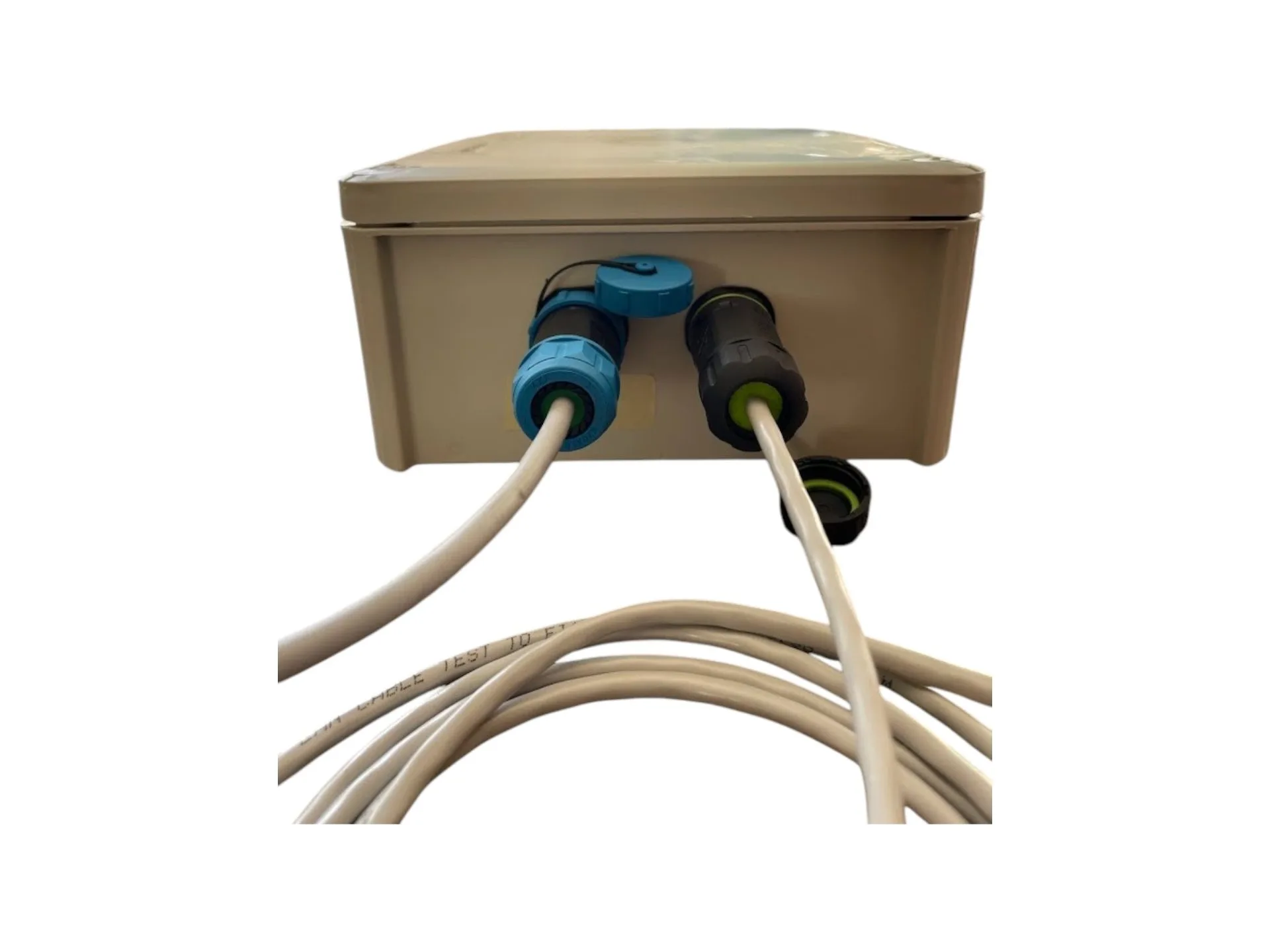

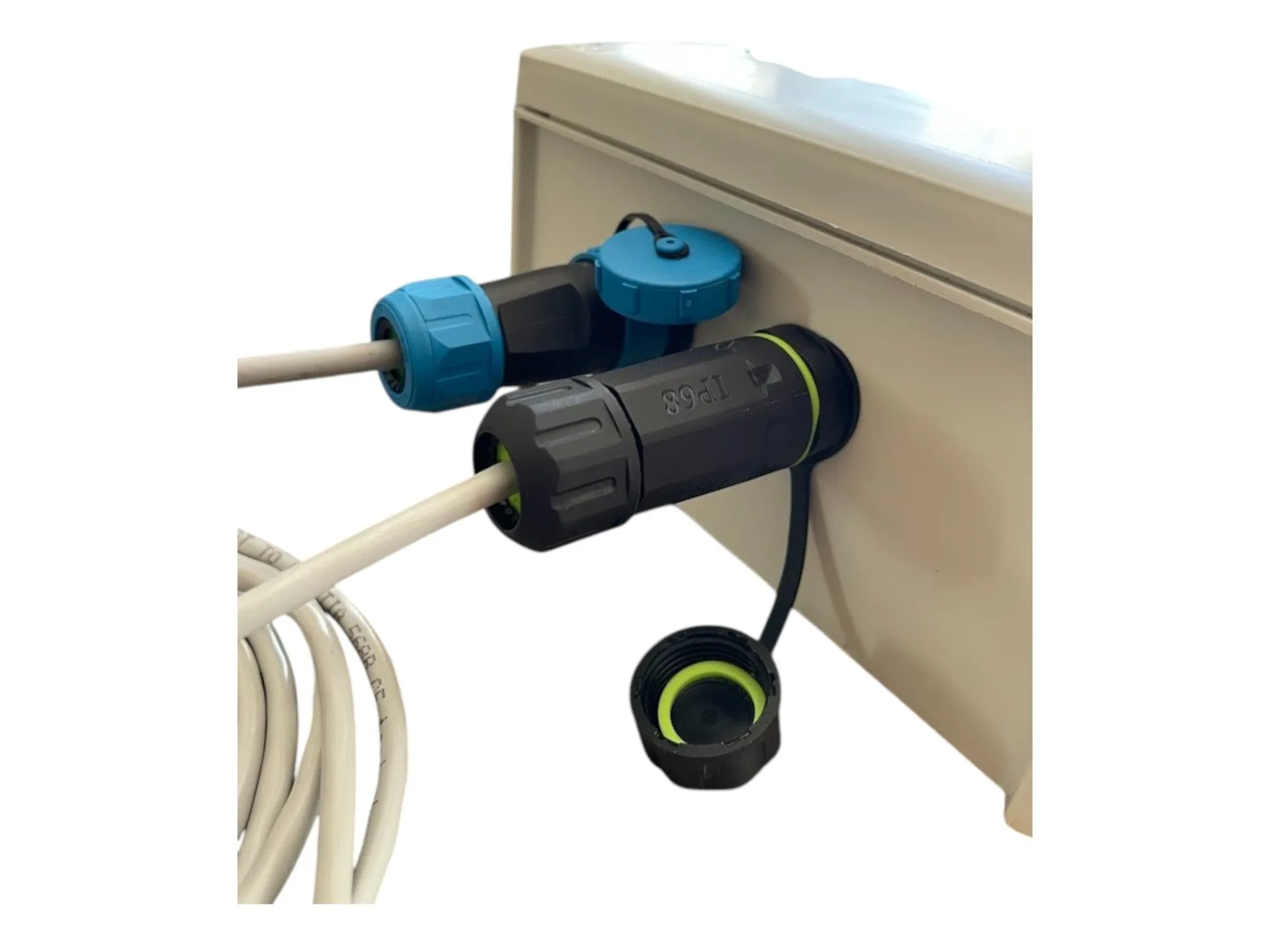

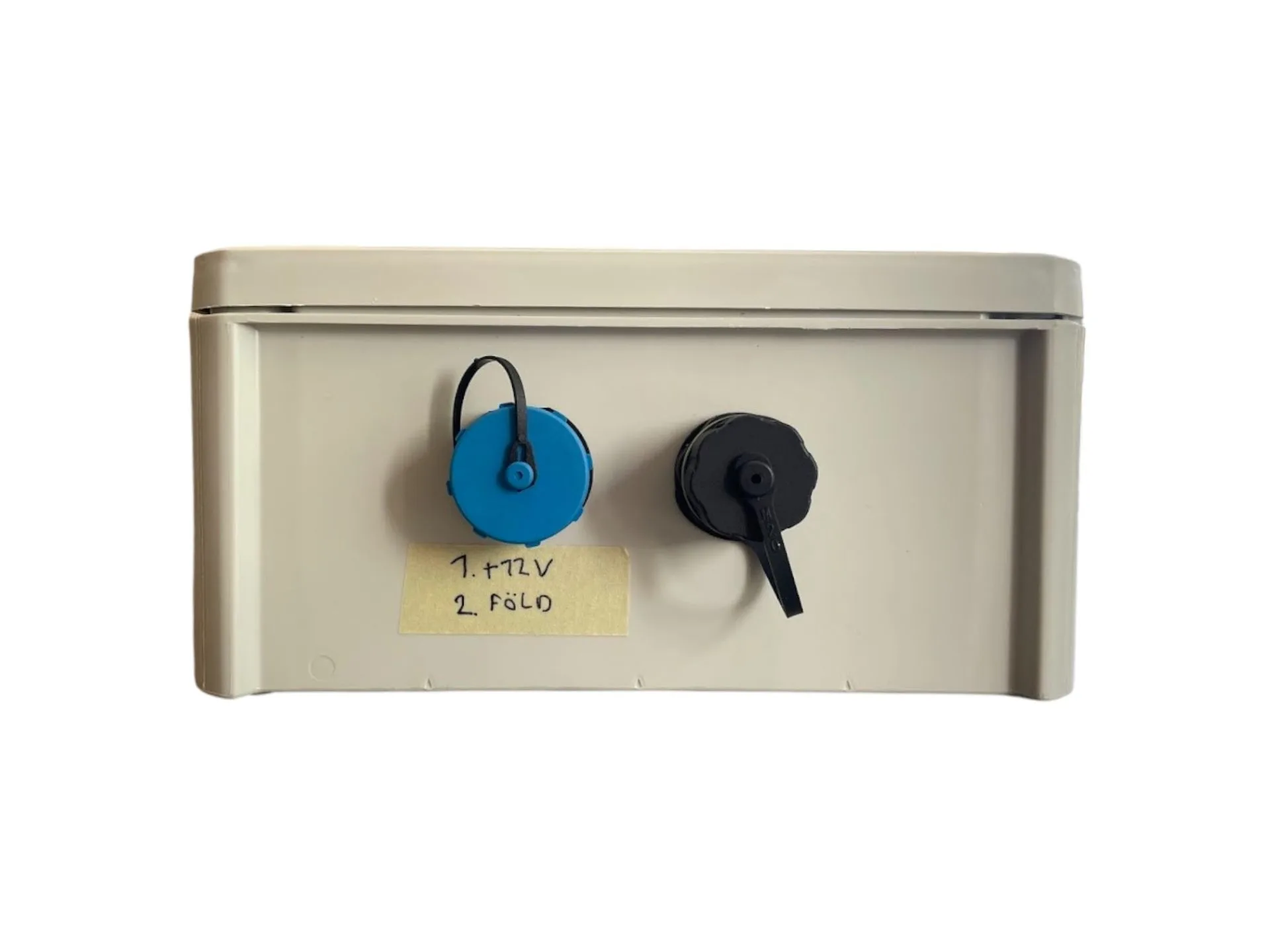

  • watertight ethernet and power cable entry
  • capable of controlling eight sections
  • 12 V current required
  • dimensions: 19 x 24 x 9 cm (7.48in x 9.45in x 3.54in)
