Price range: $295.3 through $330.7 + VAT

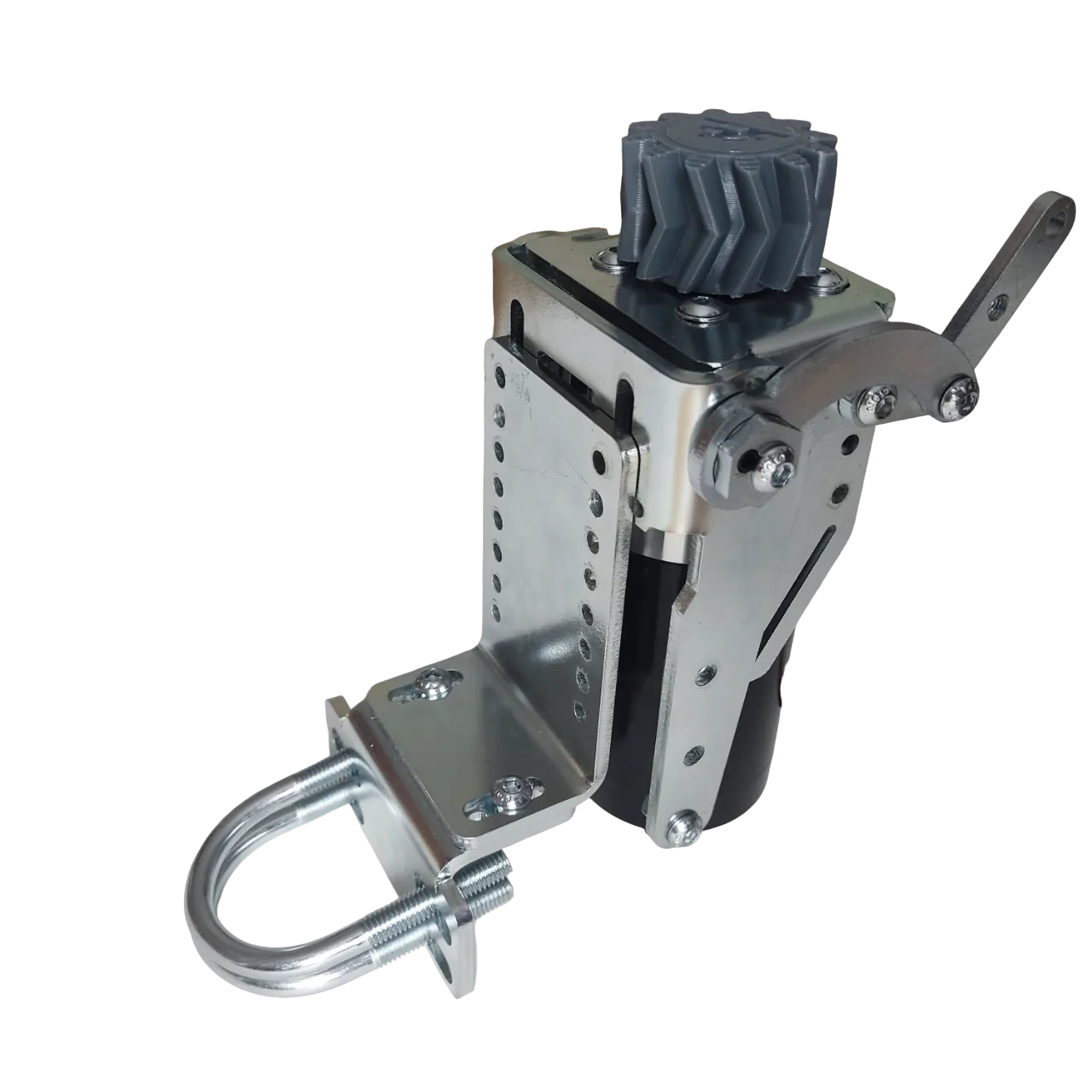

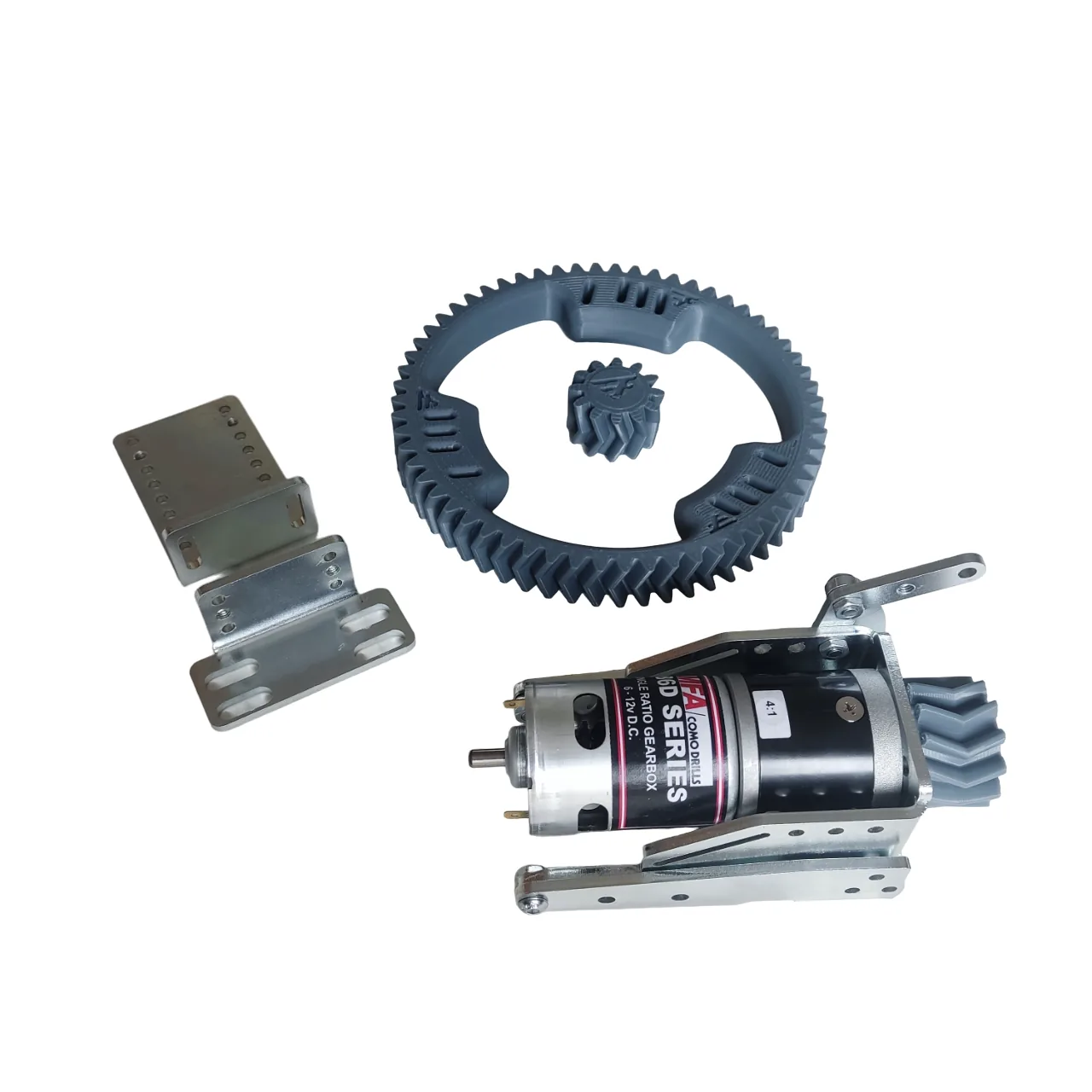

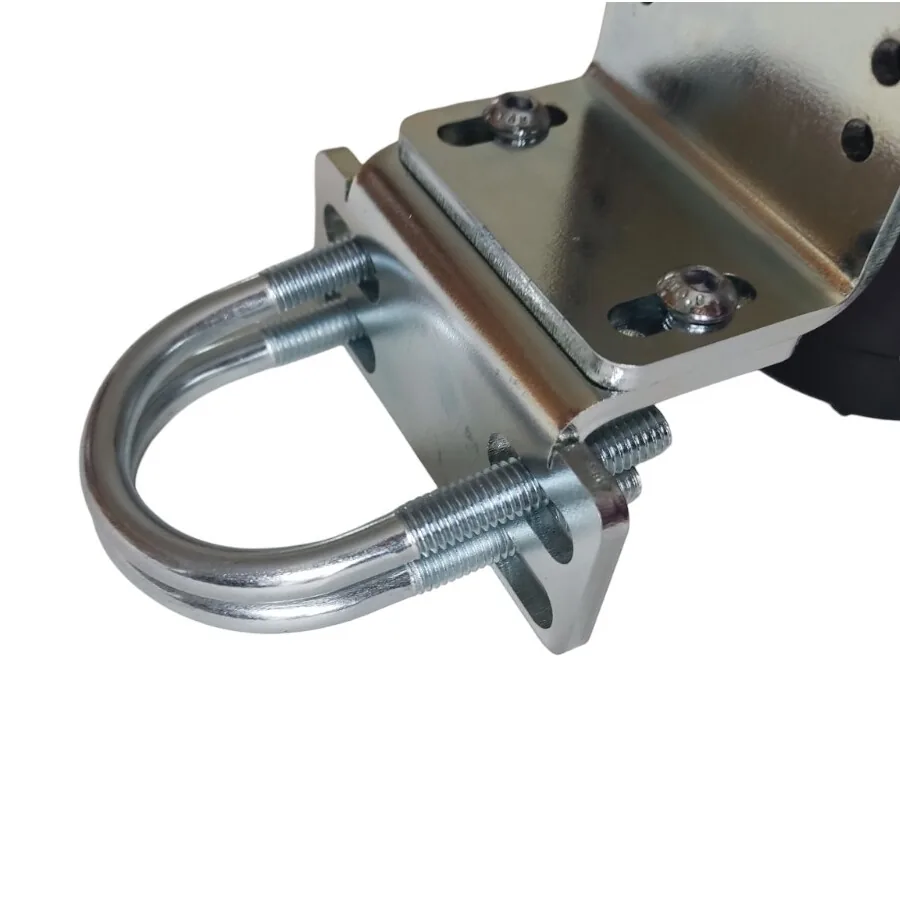

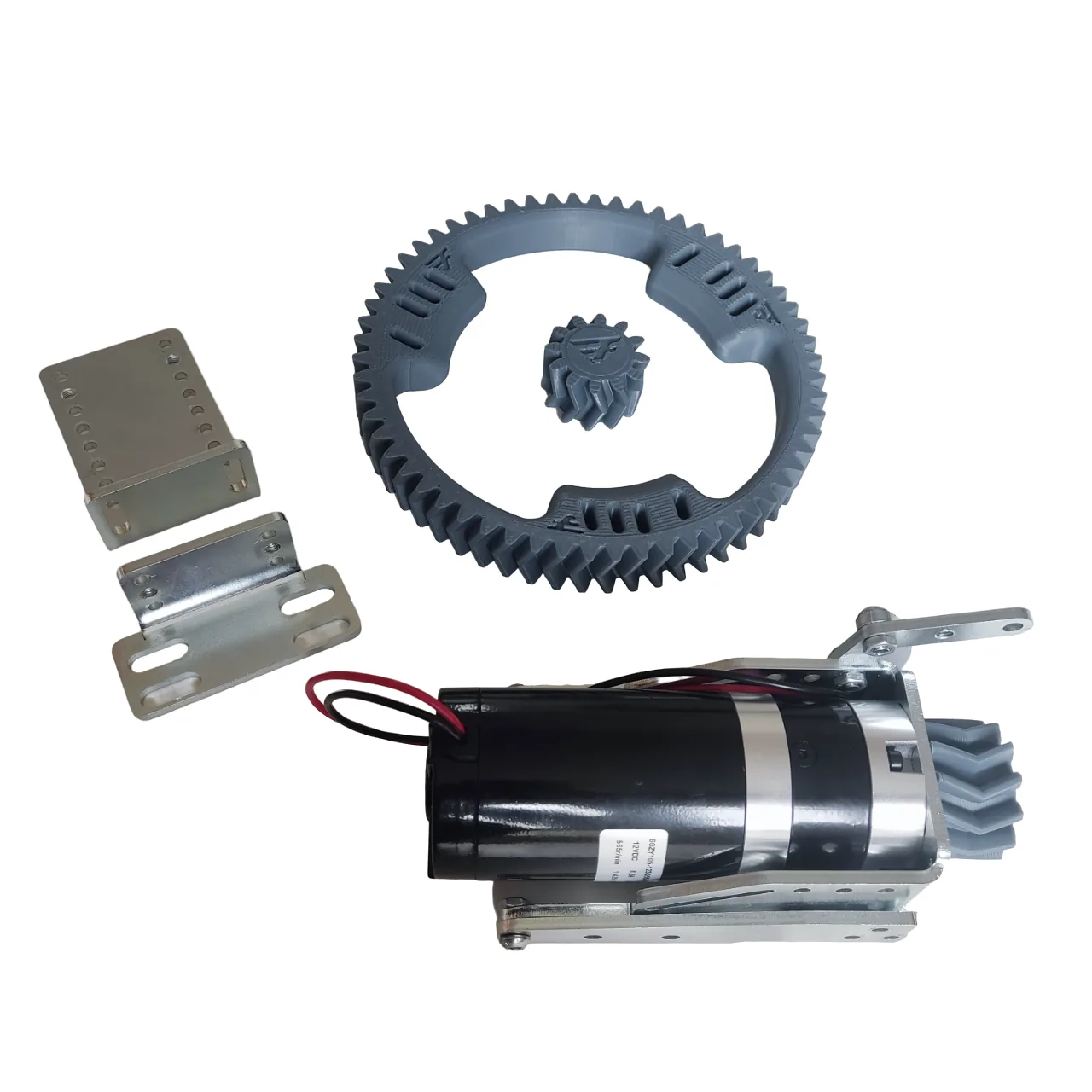

Includes a galvanized motor mount, gears and wide tie-downs for securing.

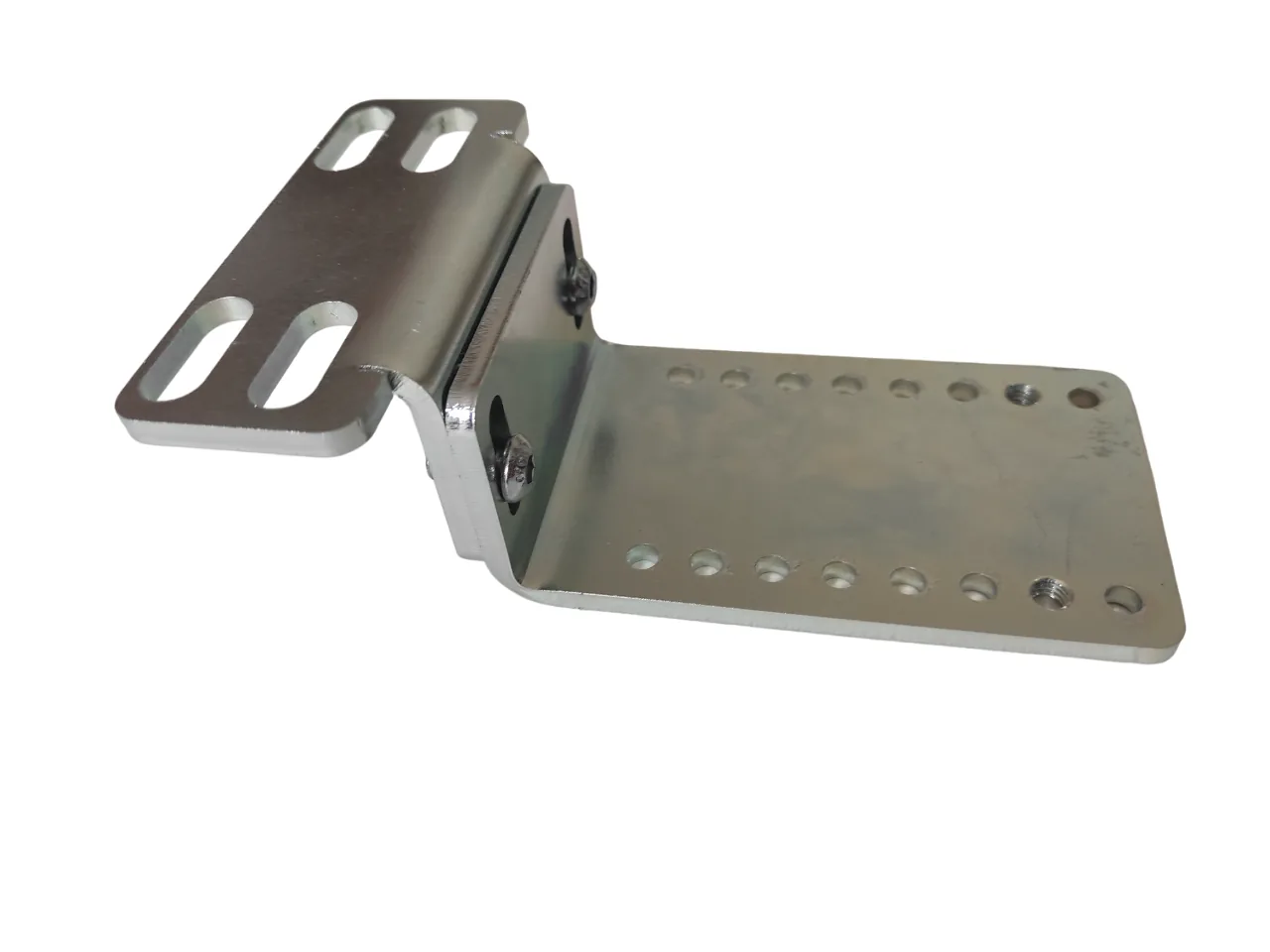

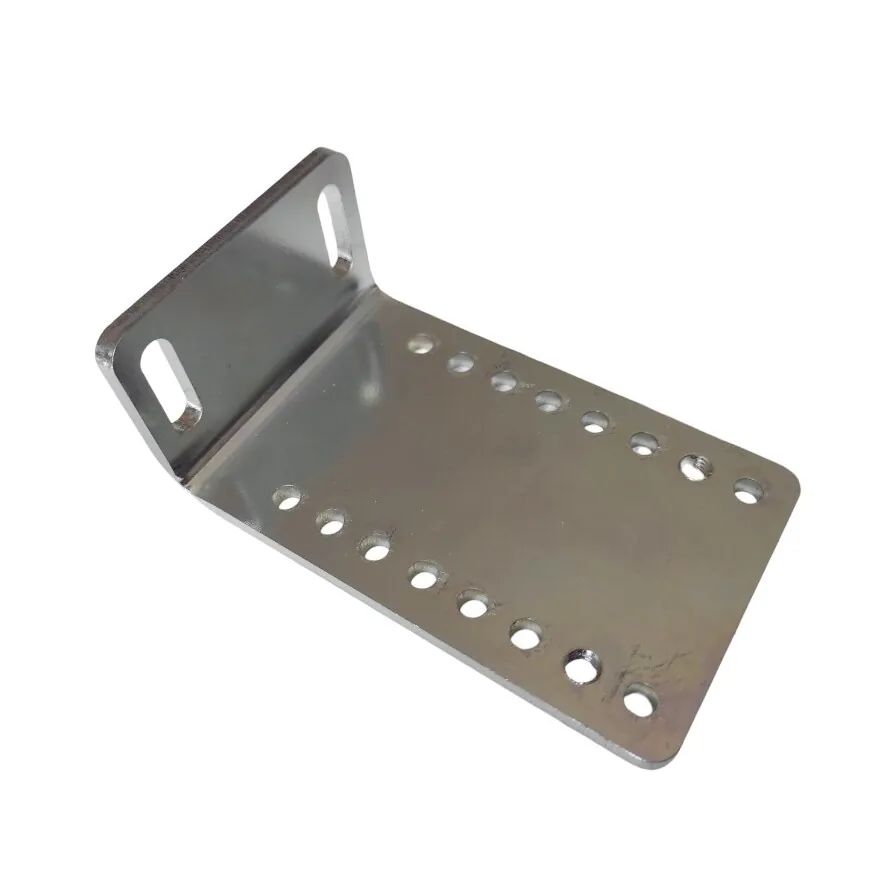

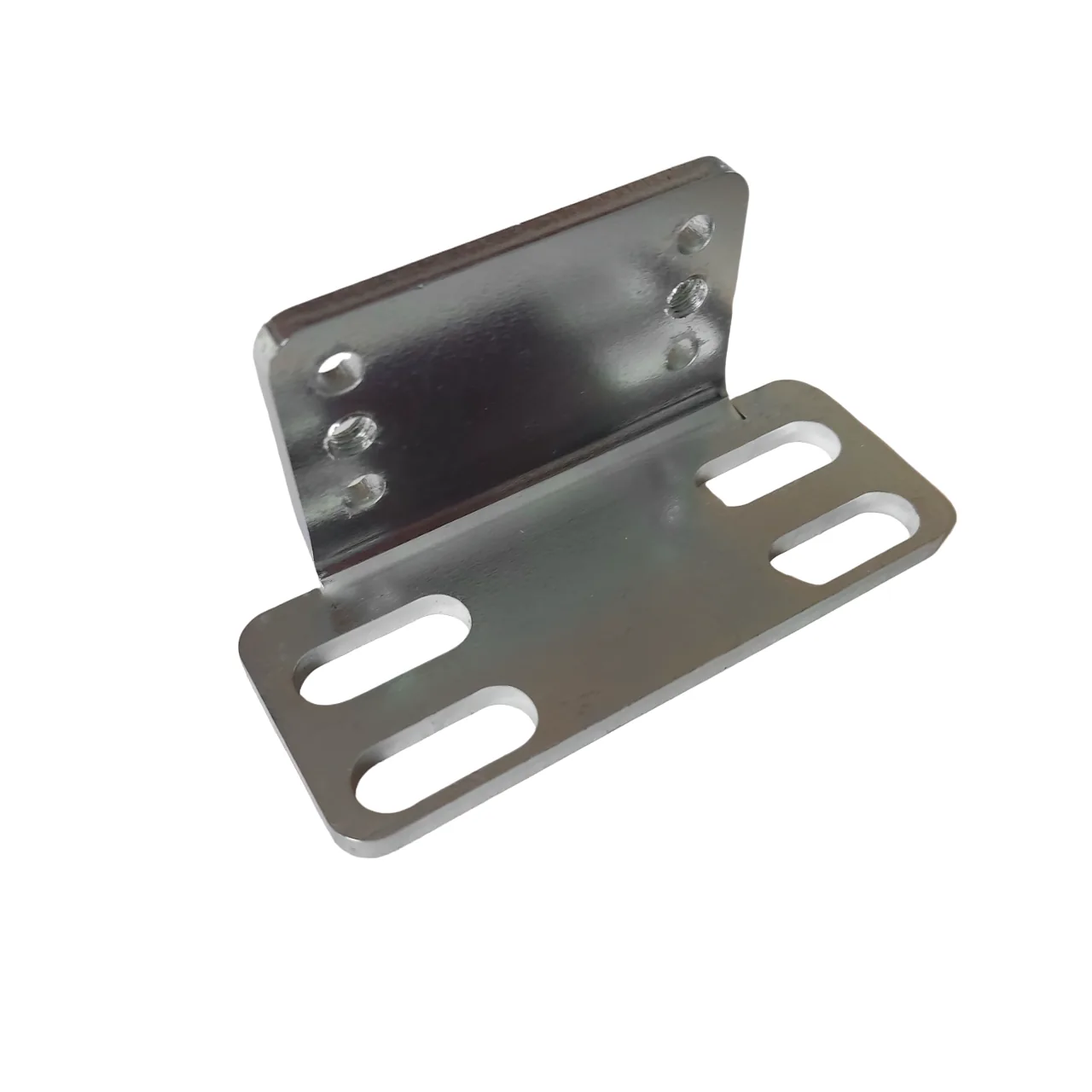

It also comes with a set of multi-furrow brackets for easier fitting.

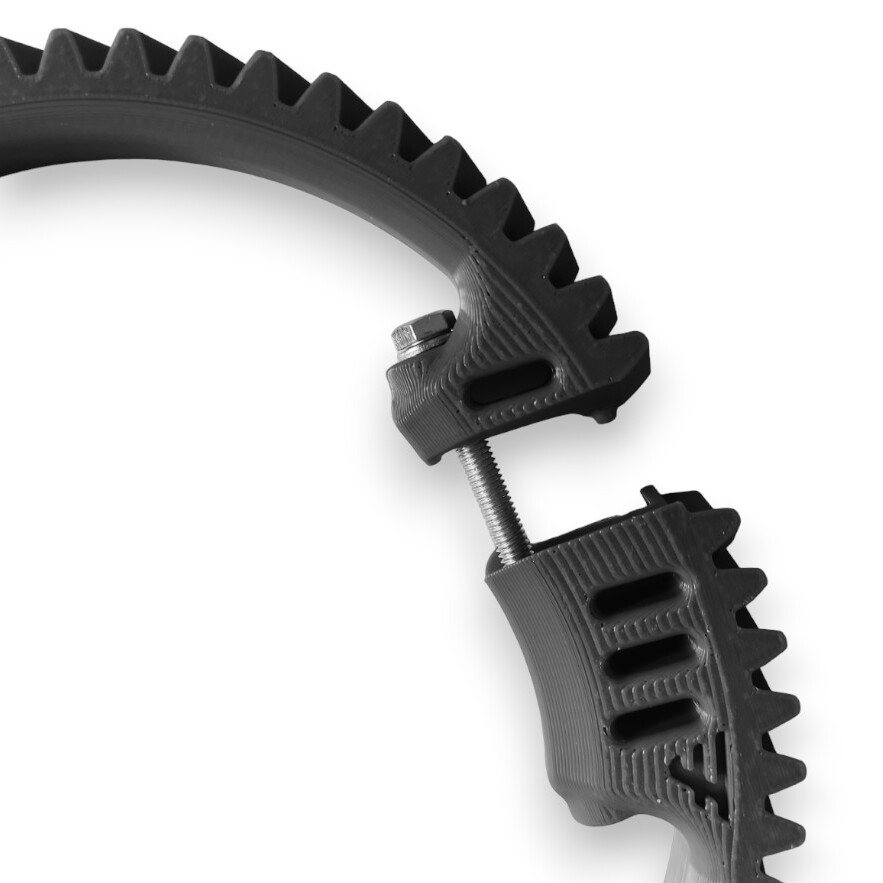

As for large gear, we recommend the three-segment, bolt-on type. The single wheel is a little more robust, but can only be fitted by removing the steering wheel, which can be a challenge. See product variations.
The 3D printed gears are made of PET-G material and will not wear out after years of use.
And there are multiple motor types available, from the general purpose (diameter 50mm) to the extra powerful (diameter 60mm). See product variations.

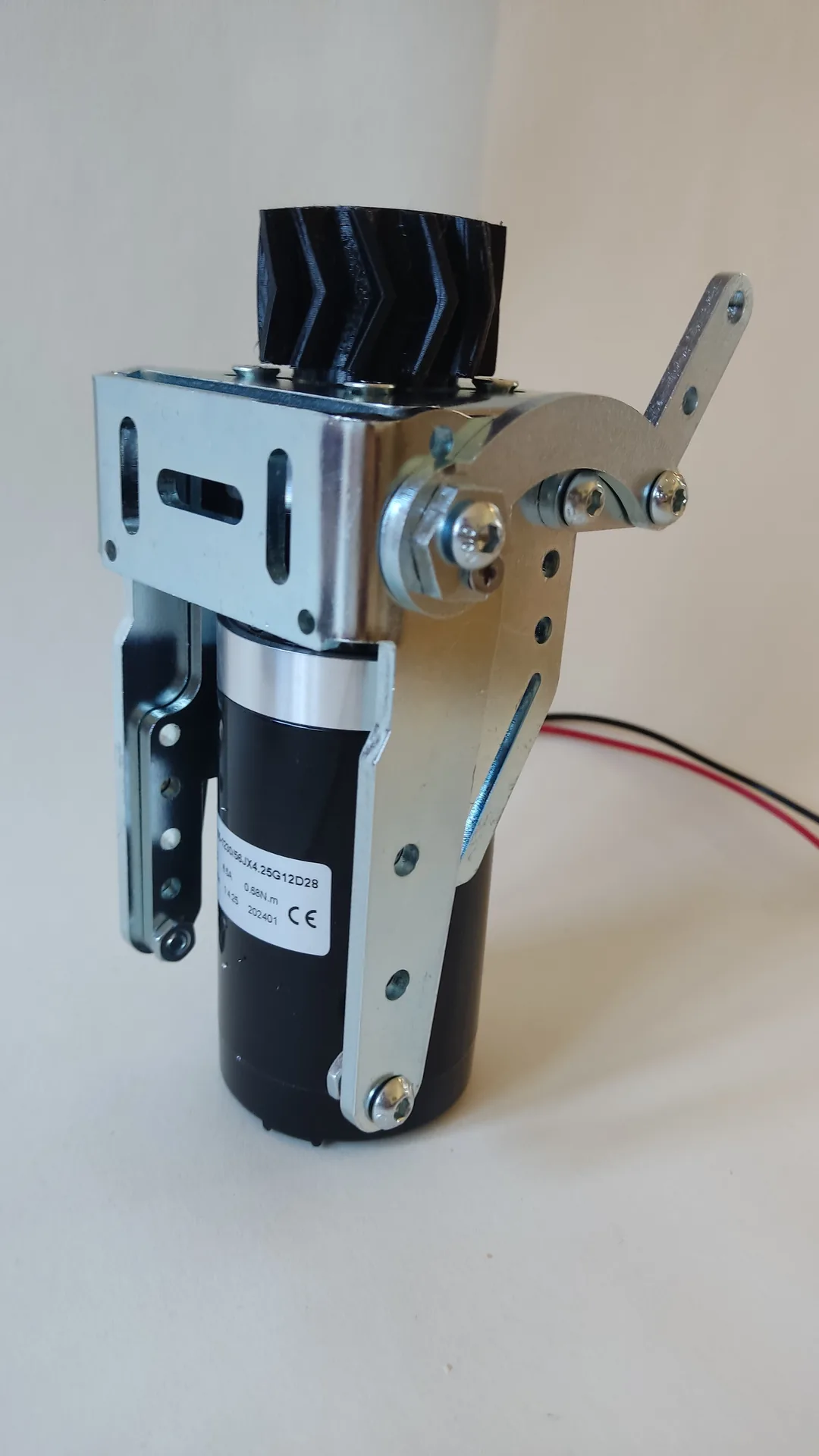

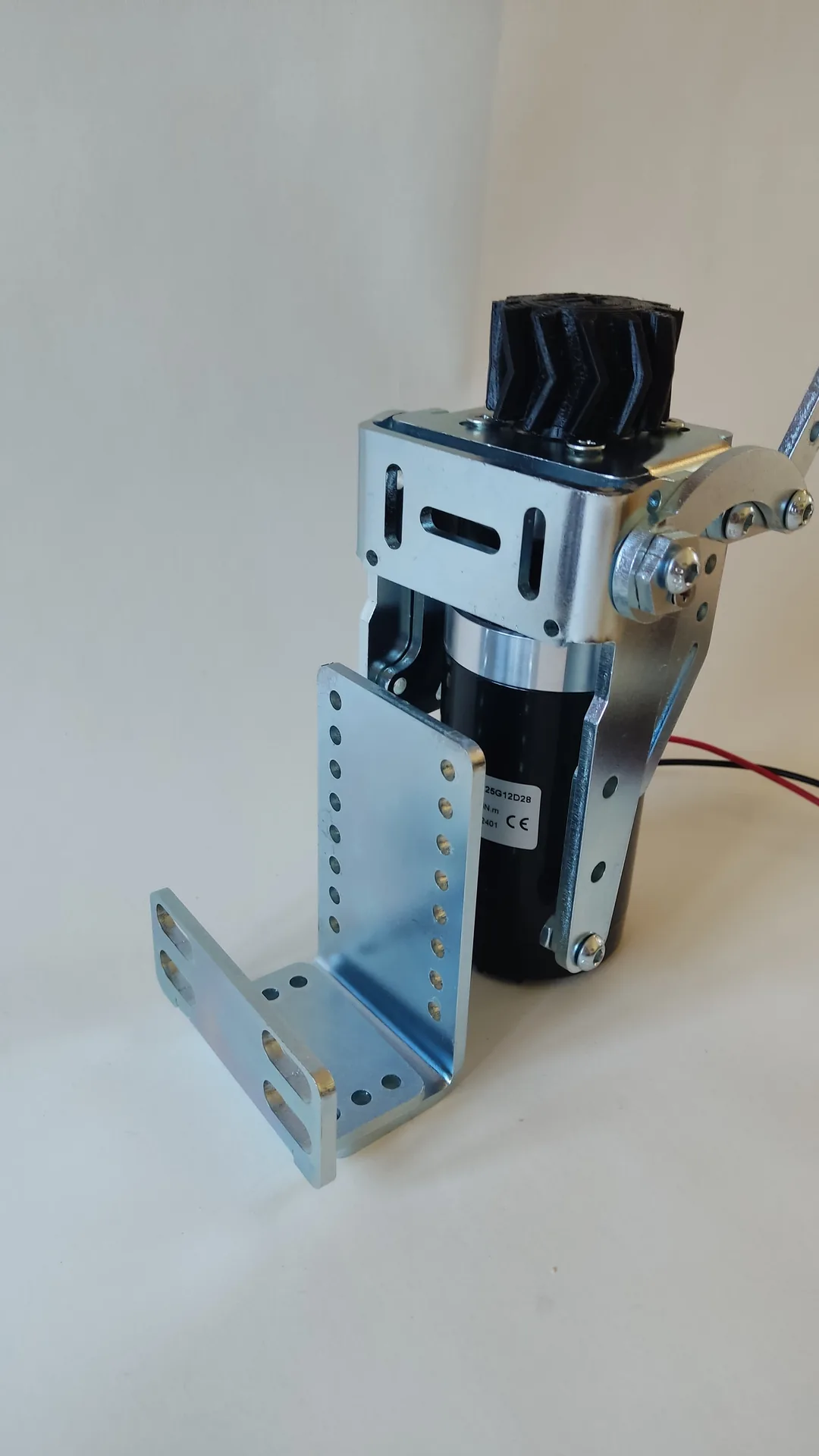

The motor mount is based on bricbric’s, and the 3D printed plastic gears are based on PotatoFarmer’s designs.
| Weight | N/A |
|---|---|
| strength | 50mm general, 60mm extra powerful |
| gear | 3 segment, single |
To ensure you select the correct adapter, the most reliable method is to remove the steering wheel and measure the diameter of the splined shaft, as shown in the image.
In most cases, the spline count is 36; therefore, the diameter is the determining factor. Based on our experience, dimensions are consistent across certain brands.
Models for which the data in the table below are highly reliable:
John Deere and newer machines from the CNH Group: A+
Claas and Massey Ferguson: N
| Adapter Model | Tractor Brands & Models | Adapters teeth no. | Adapters size |
|---|---|---|---|
|
A+ |
CNH group newer:
|
36 |
21.8-22.1 |
|
D |
|
36 |
20.4 |
|
K |
|
36 |
17.8 |
|
N |
|
36 |
15.8 |
|
B |
|
36 |
18.2 |
|
W |
|
36 |
18.5 |
|
F |
|
single key |
24.5 |
|
NH40 |
older ones:
|
40 |
17.7 |
|
T |
|
18 |
15.45 |
|
G |
RARE:
|
36 |
15.6 |
|
C |
|
single key (conical) |
23.33-25.4 |
|
BENZ- 72S |
|
72 |
23.5 |
