SDcard replacement in RTK base

RTK_Base_SDcard

SDcard replacement in RTK base

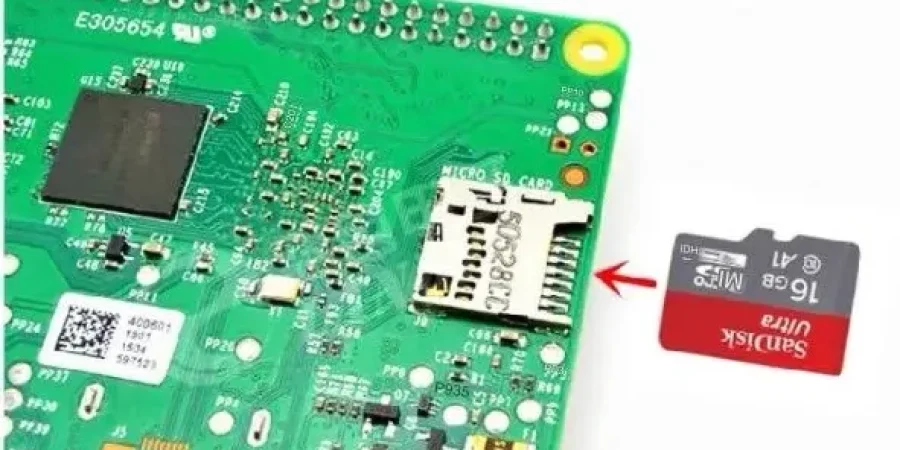

SD card is the weakest point of the RTK base station. We ship our RTK Base with industrial SD card and still failor is happens sometimes. Furtunatly the repairement is fairly easy. Here is a step by step guide for creating a new SD cadr for raberry Pi based RTK base:

  1. take a good quailty micro SD card, recomeded size 16GB (8GB is already OK)
  2. find a computer with internal or external SD card reader
  3. Install Rasberry Pi Imager
  4. Download AgOpen ready made image
  5. Write the image to the SD card
  6. Start up the RTK base from the new SD card
  7. Check the connector from the rasberry to the RTK receiver
    1. In case you dont see coordinates and satelites on Status page
      run “detect and configure” on Settings page
  8. Write back settings
    1. mount point of the base
    2. cordibates of the base (you ask it from us or centipede administrator)
  9. comleted 🙂


Rassberry Pi Imager: scoosing the image (5.)

RTK base setup page

Products
Resources
About Us
Log in

Adapters for different tractors

To ensure you select the correct adapter, the most reliable method is to remove the steering wheel and measure the diameter of the splined shaft, as shown in the image.

In most cases, the spline count is 36; therefore, the diameter is the determining factor. Based on our experience, dimensions are consistent across certain brands.

Models for which the data in the table below are highly reliable:

  • John Deere and newer machines from the CNH Group: A+

  • Claas and Massey Ferguson: N

Adapter Model Tractor Brands & Models Adapters teeth no. Adapters size

A+
  • JOHN DEERE      (ALL)

CNH group newer:

  • CASE                    (PUMA, Maxxum, 5150, 110)
  • NEW HOLLAND    (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304, T5.120, TC56)
  • STEYER
  • LANDINI                (6-115H, Powerfarm 95)
  • DEUTZ                   (Agrofarm 420 y2012)
  • LAMBORGHINI     (874-90 Turbo)
  • REANULT              (French, 11404)
  • ZOMMLION          (2604)
  • ARMATRAC
  • YTO                       (smaller ones to 90hp)
36
21.8-22.1

D
  • FENDT                (ALL)
  • CASE                  (CVX 1170)
  • DEUTZ                (5110 , 5105, Agrotron XXX)
  • KUBOTA             (M7-153)
  • LANDINI              (Vision 100)
  • LAMBORGHINI
36
20.4

K
  • BELARUS MTZ            (824, 1204)
36
17.8

N
  • MASSEY FERGUSON  (6475, 5413, 204, S1304-C, 1004, 1104, 1204, 1304, 8690, 6713S)
  • CLAAS                          (Axion y2008, 2204, 440)
  • MCCORMICK               (MC120, XTX185, ZTX280, MTX)
  • CASE                             (PUMA145, 185CVX, MX 110)
  • VALTRA                         (N154)
  • STEYR                            (6125)
36

15.8
(conical)

B
  • LOVOL              (1004, 900, 1654)
  • WORLD            (1304, 2204, 604, 904, 1404, 1604)
  • FOTON             (904, 700, 750, LX800, 754, 90, LF904, 1204)
  • YTO                   (120/130hp)
36
18.2

W
  • DEUTZ           (904, 454, 604, 704, 804, 1204, 1604, 1654)
  • LOVOL        （1304, 900, 904, 654, 1204, 1504, 800）
  • FOTON          (small ones)
36
18.5

F
  • VALTRA       (2104, 191, 1904, 1504, 8158, T183, T171, N143)
  • ZETOR
  • KIROVETS    (K-734)
  • BATEMAN
  • SANDS
  • KNIGHT        (SP sprayers)
  • HARDI          (Alpha)

single key
24.5

NH40

older ones:

  • NEW HOLLAND     (1304, TS100, T5050)
  • CASE                      (MXM)
40
17.7

T
  • KUBOTA                 (594)
  • YANMAR                (AC21W, rice transplanter)
18
15.45

G

RARE:

  • MASSEY FERGUSON              (4365, old ones)
  • CASE & NEW HOLLAND        (old, manufactured in the US)
36
15.6

C
  • CLAAS             (Lexion)
  • TUCANO
  • AVERO
  • JAGUAR
single key (conical)
23.33-25.4

BENZ- 72S
  • MERCEDES      (Unimog)
72
23.5
