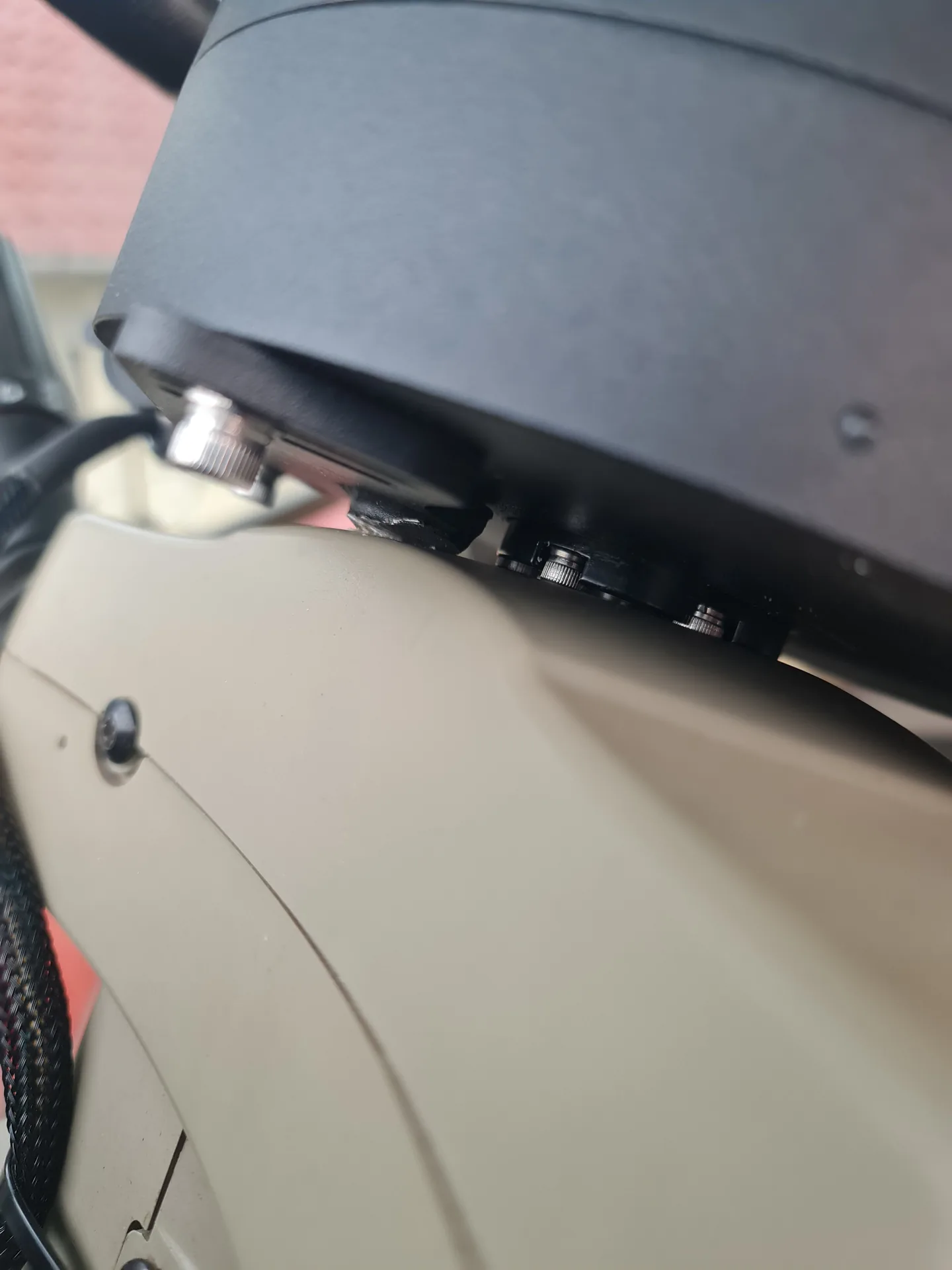

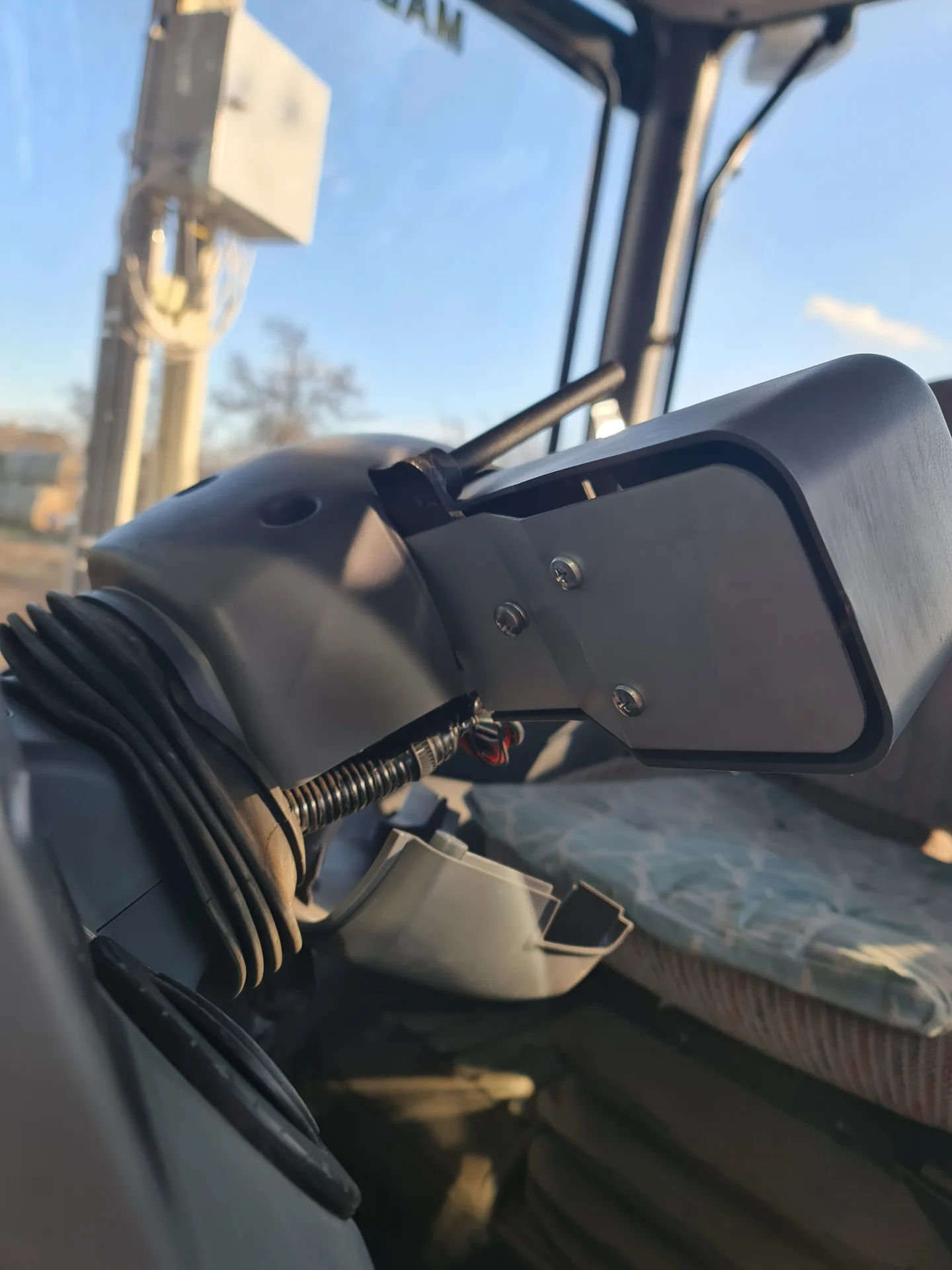

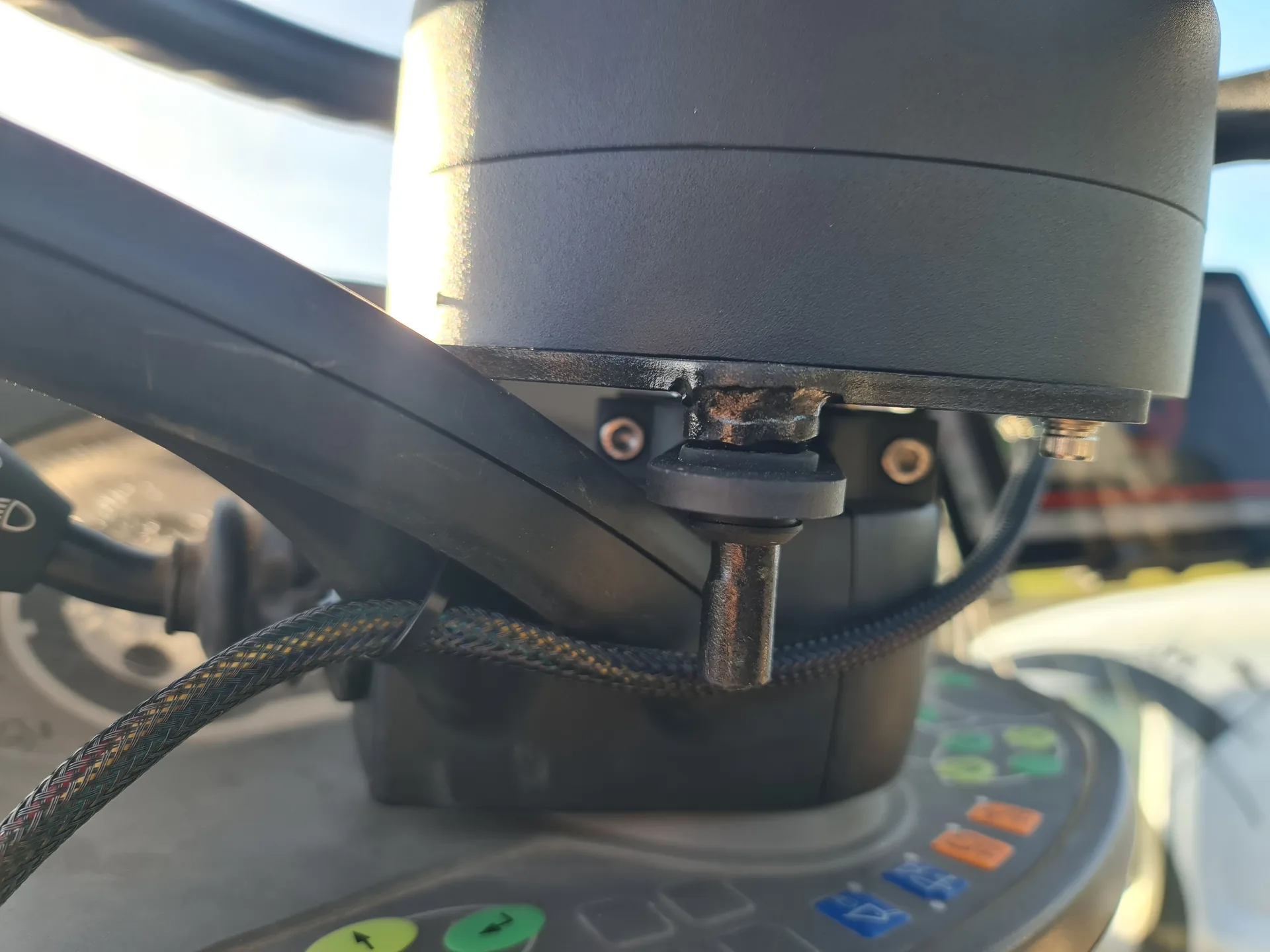

3. Direct Drive Wheel Motor

Description

Advantages over the geared version:

quieter
easier to adjust, due to its built-in self-regulation
easier to install

FJ Dynamics has been using this from the beginning, but FieldBee Dutch automatic handlebars have also switched to this motor. It is found in many domestic tractors.

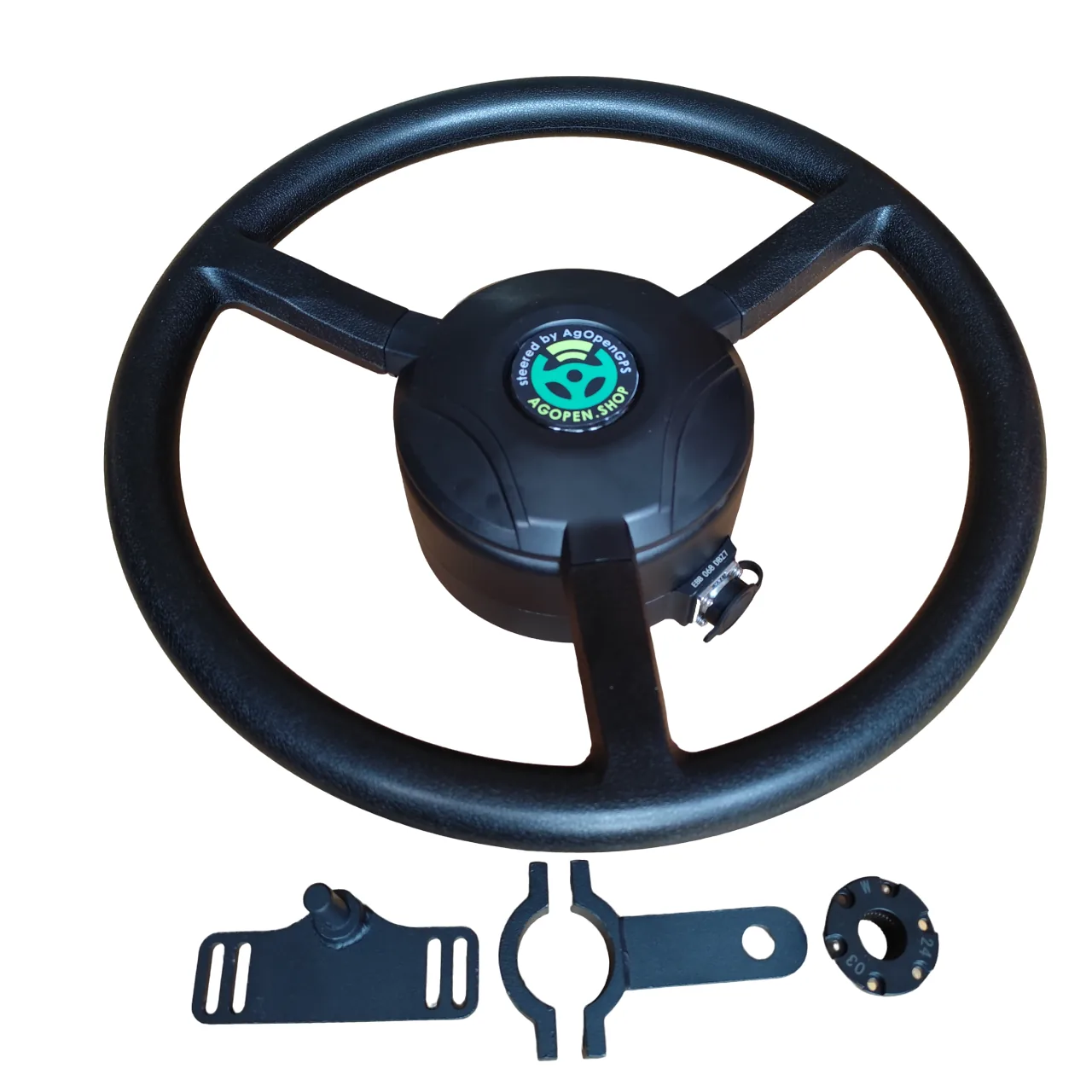

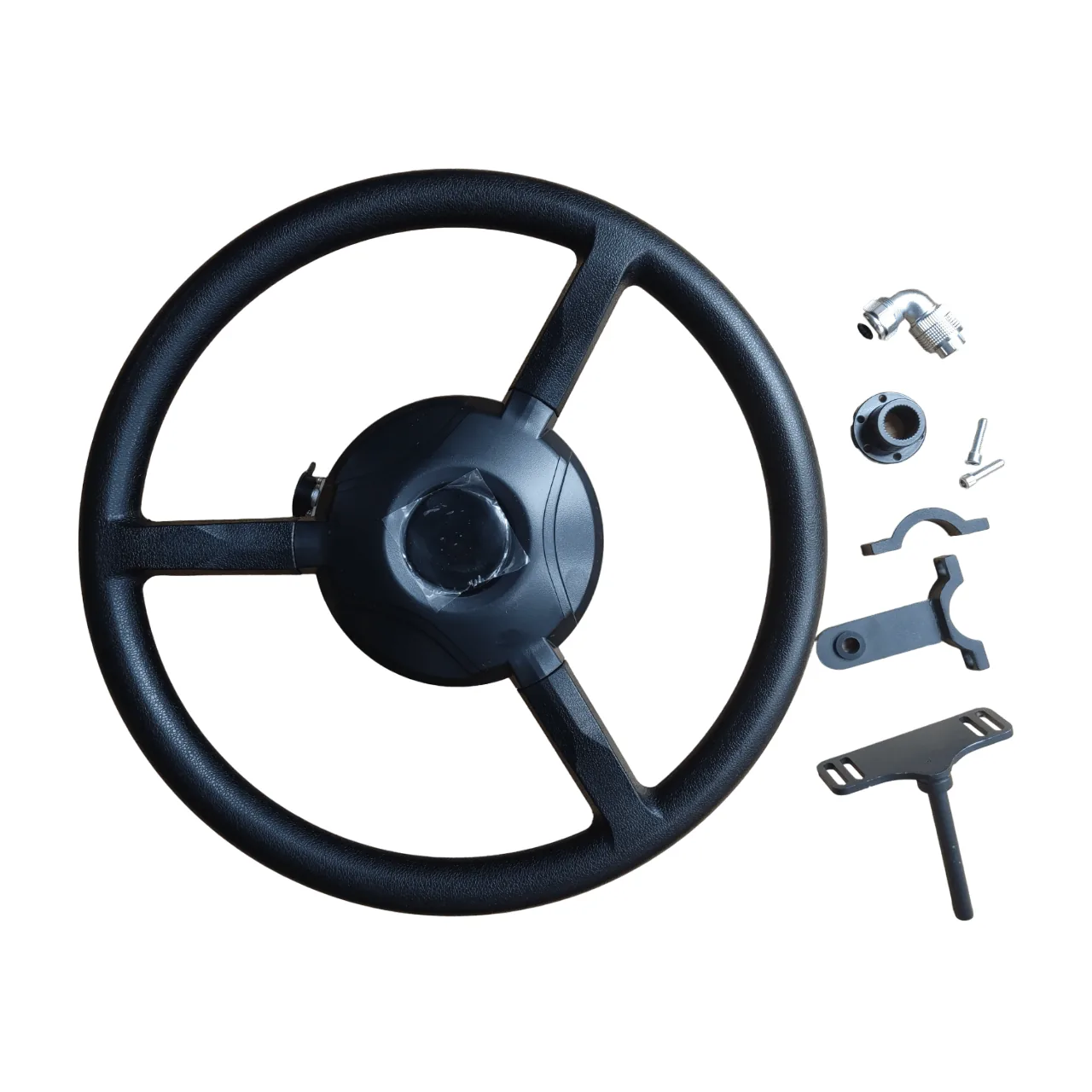

Includes:

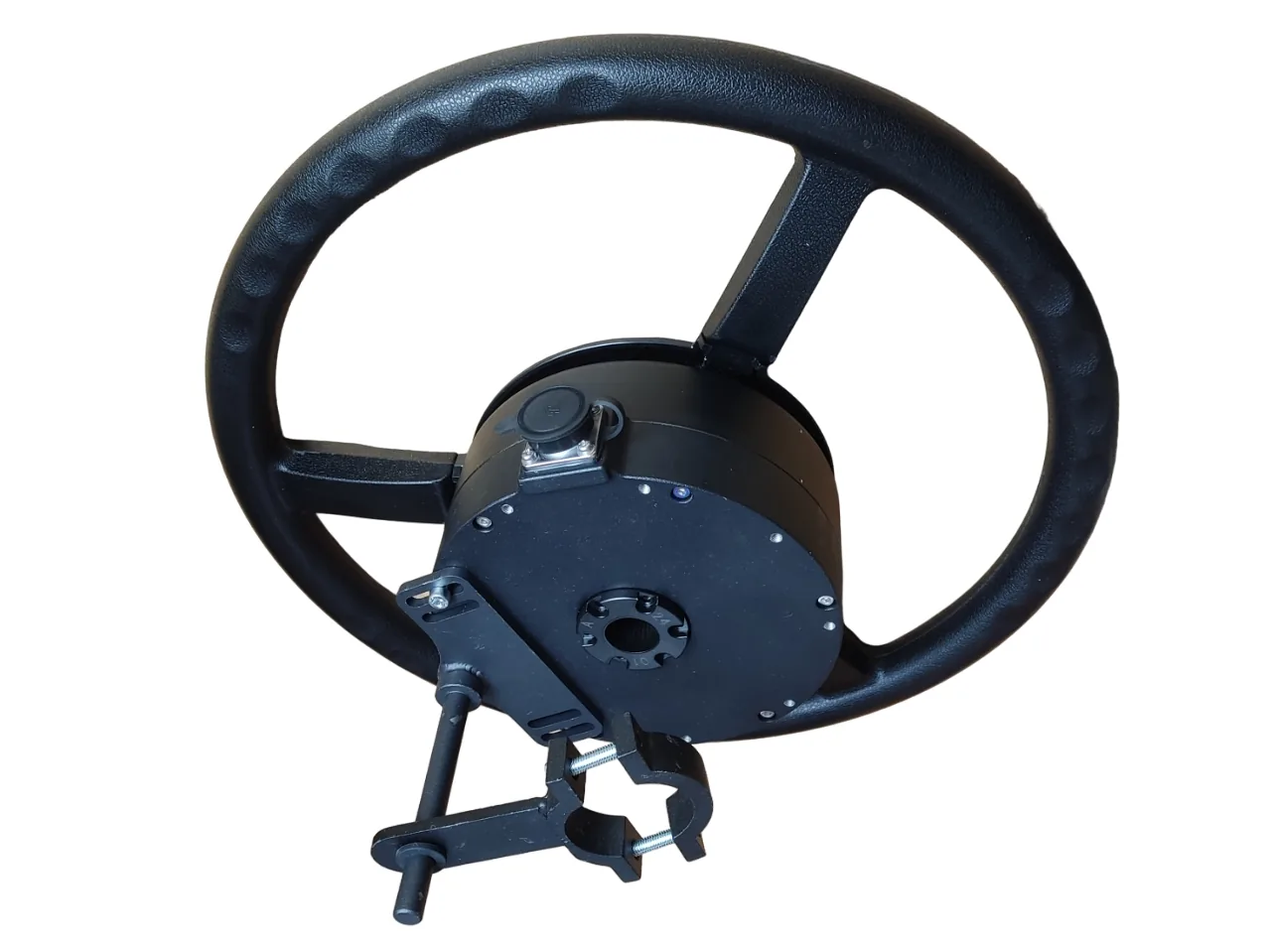

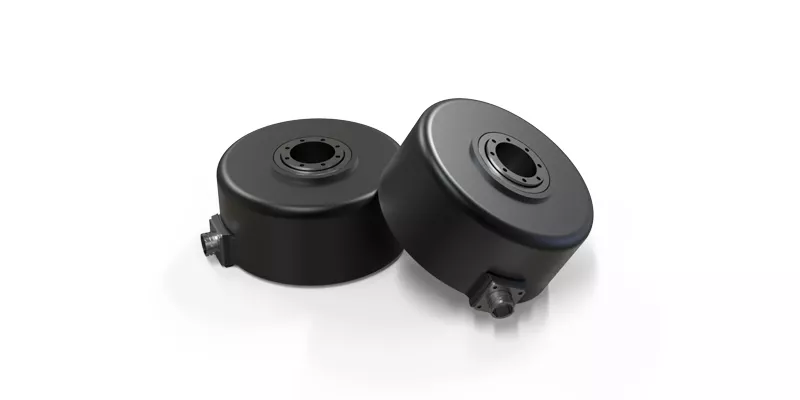

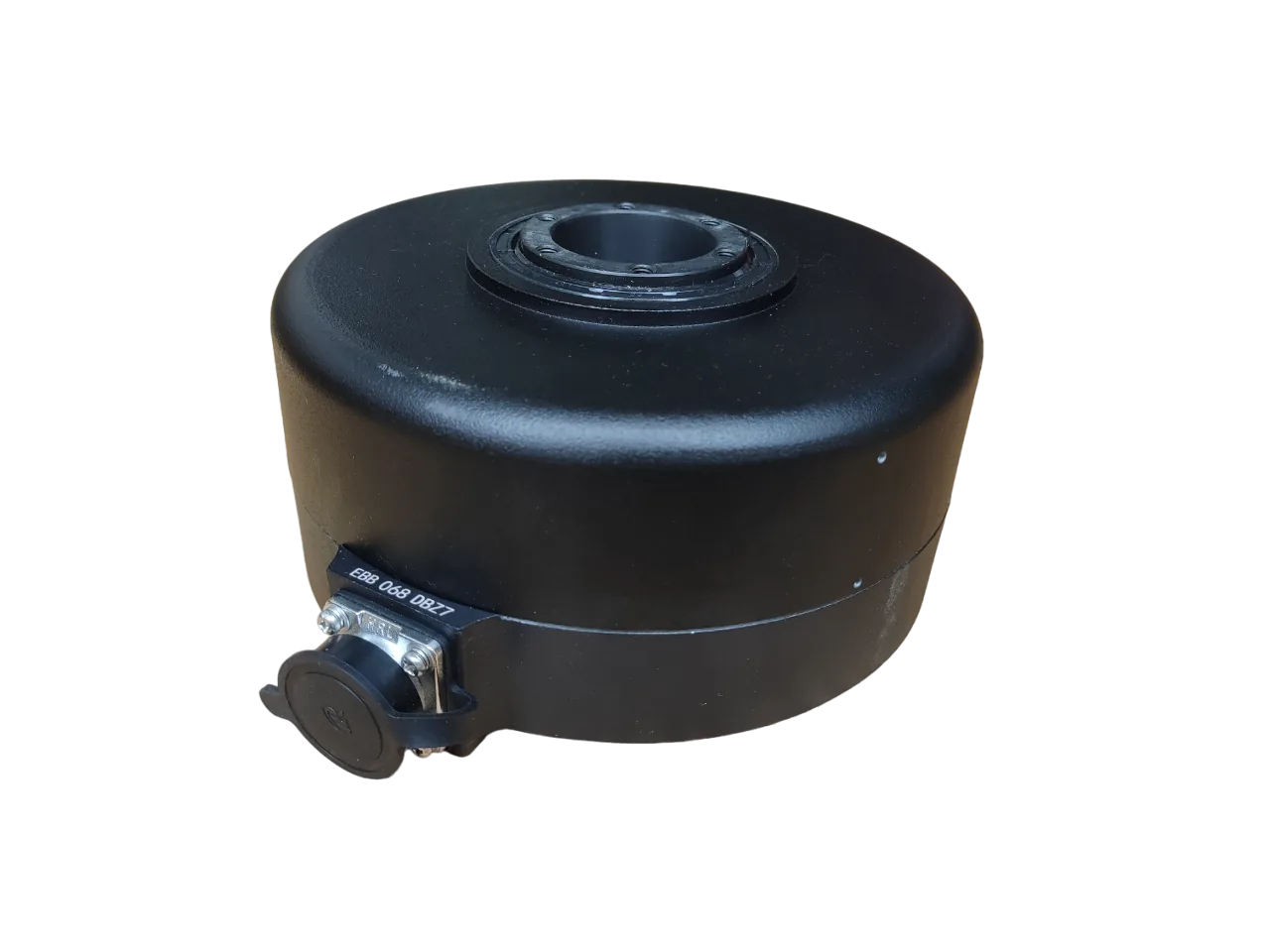

Direct Drive Wheel Motor
steering wheel
steering shaft adapter (supplied by arrangement)

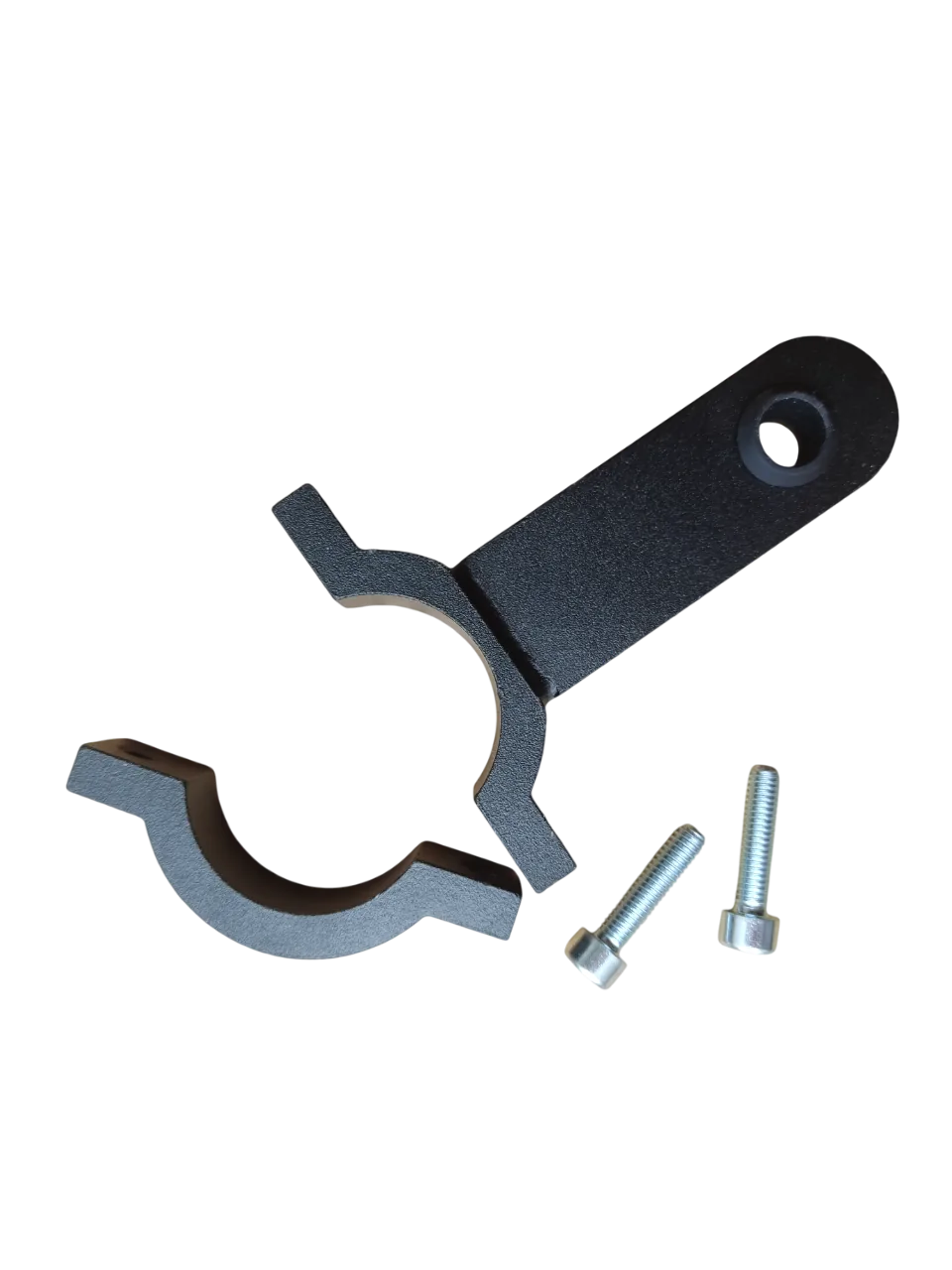

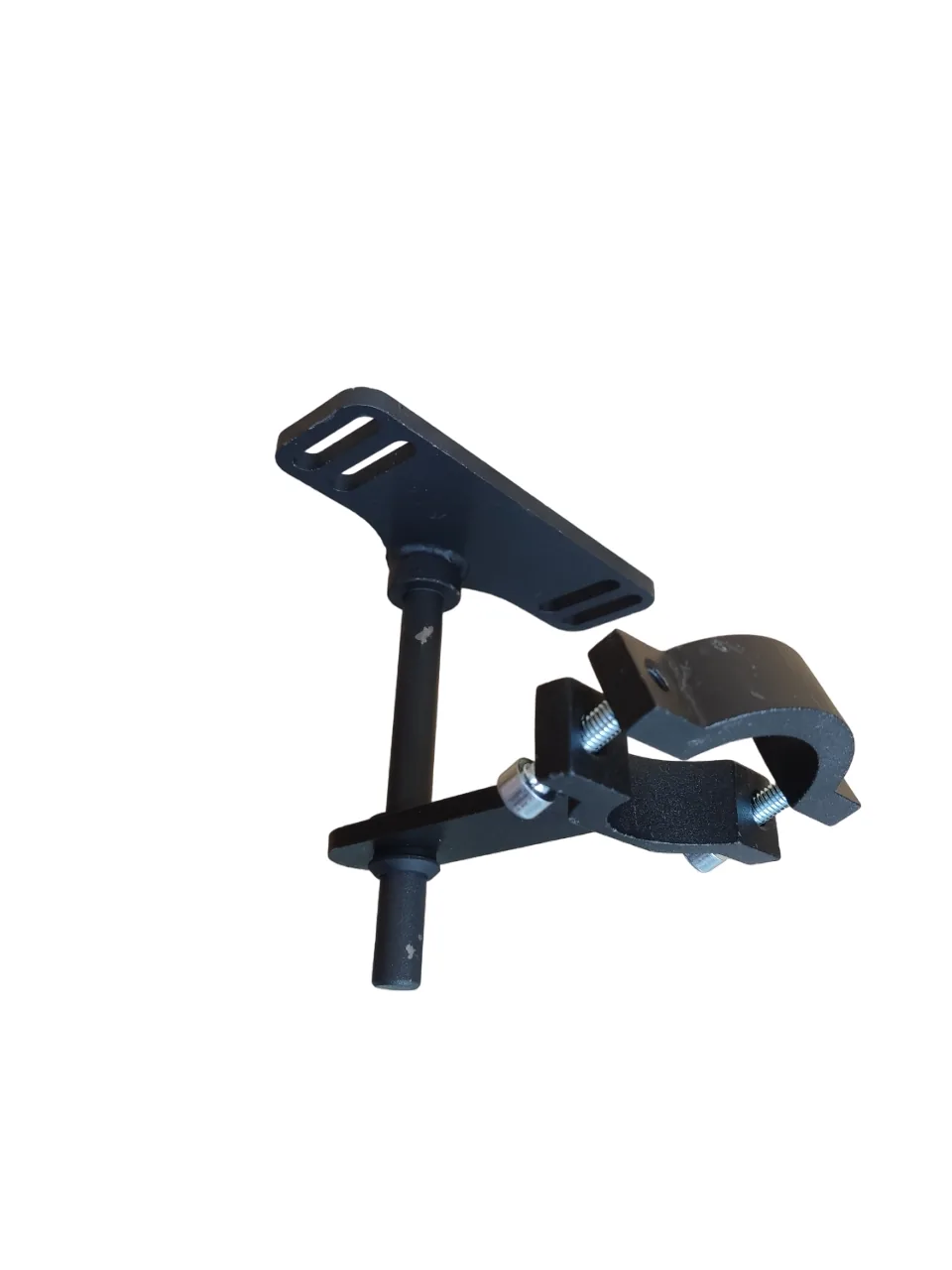

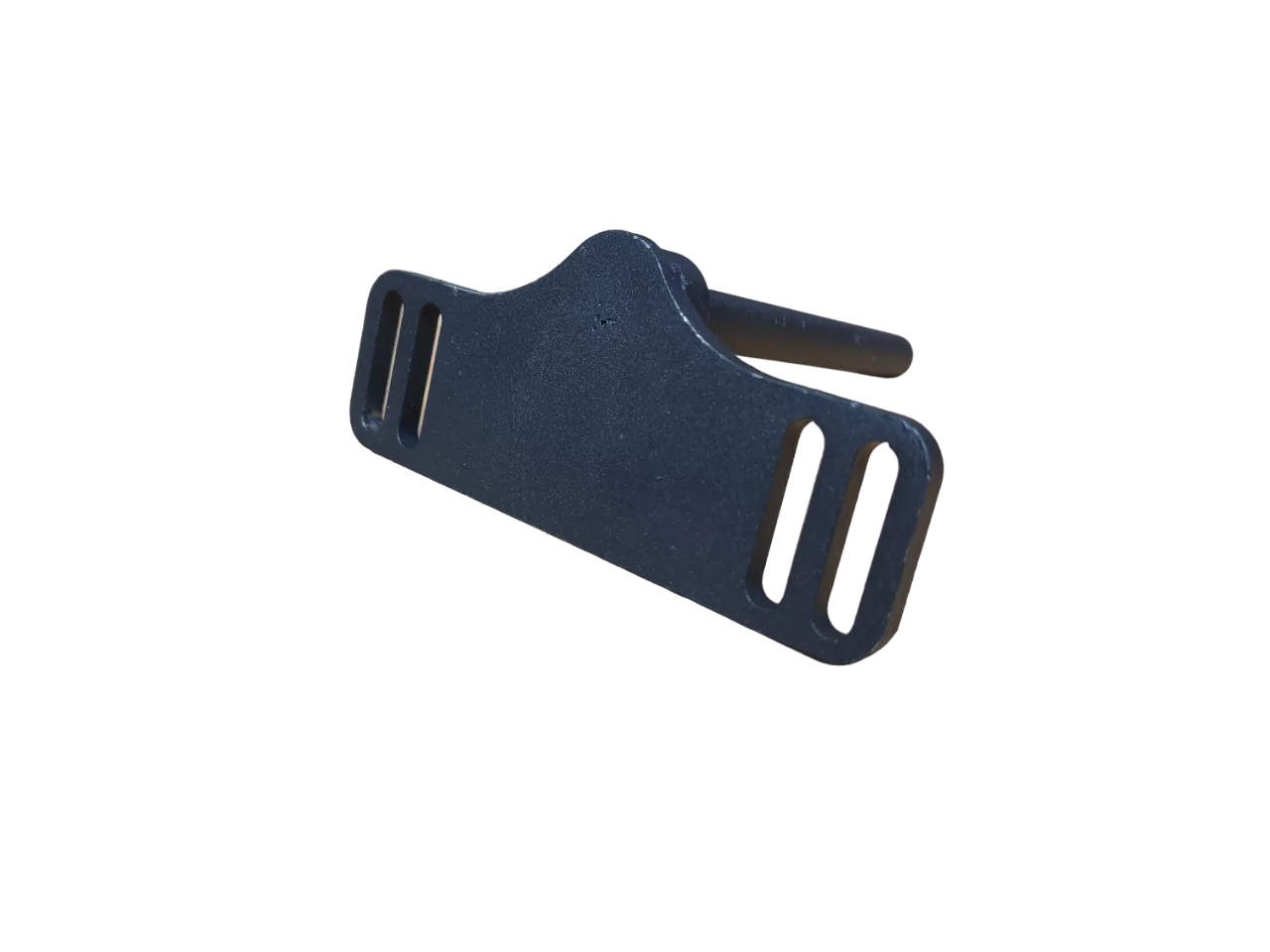

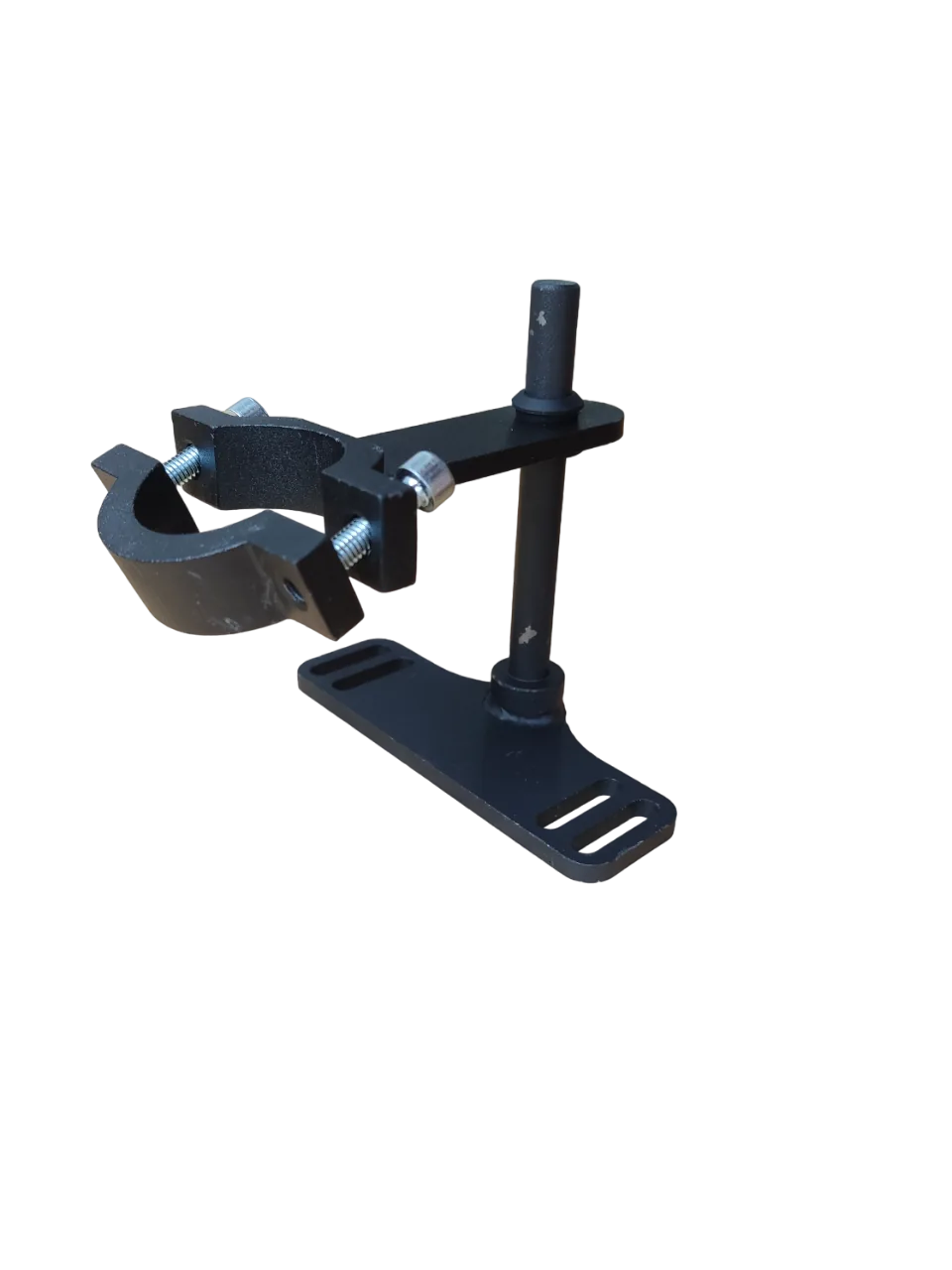

mounting adapter

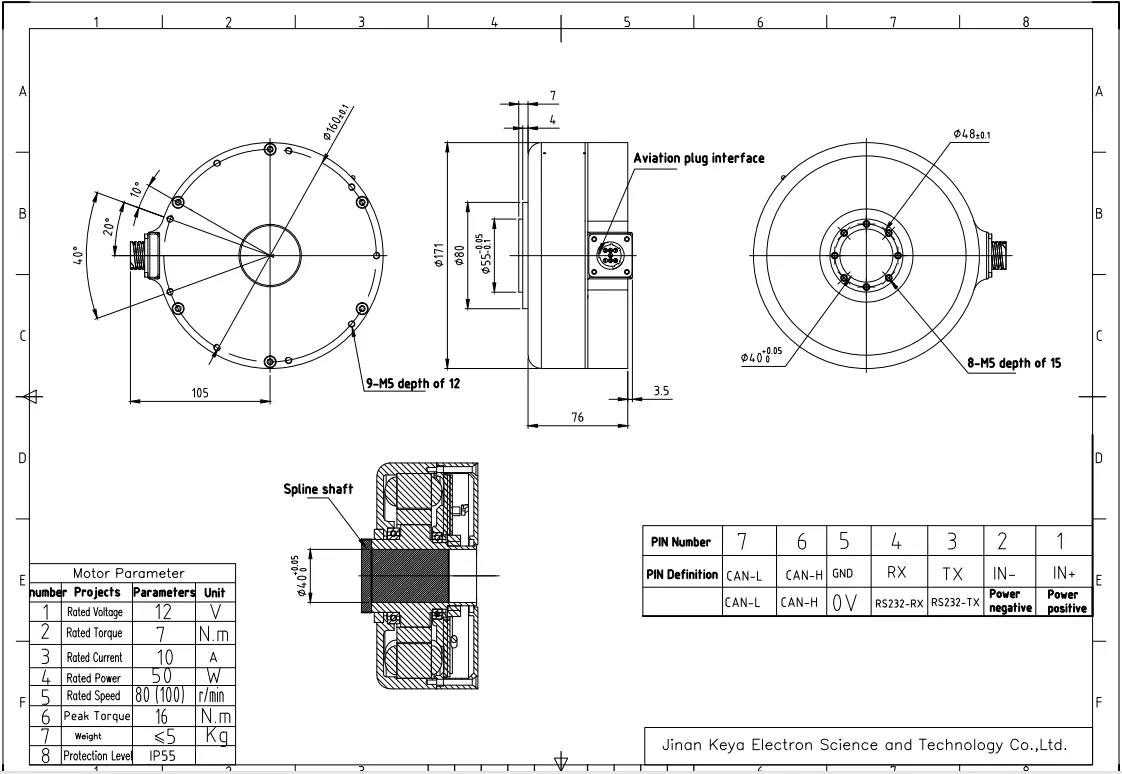

Technical specification

Control via CAN bus, angle sensor still required.

12V – 10A
High torque (7Nm up to 13Nm)
100as rpm (1:1 gear ratio!)
5.5kg motor without adapter
CE certification

*Adapters For Different Tractors*
Adapter Model	Tractor Brands & Models	Adapters teeth no.	Adapters size
A+	JOHN DEERE (ALL) CNH group newer: CASE (PUMA, Maxxum, 5150, 110) NEW HOLLAND (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304, T5.120, TC56) STEYER LANDINI (6-115H, Powerfarm 95) DEUTZ (Agrofarm 420 y2012) LAMBORGHINI (874-90 Turbo) REANULT (French, 11404) ZOMMLION (2604) ARMATRAC YTO (smaller ones to 90hp)	36	21.8-22.1
D	FENDT (ALL) CASE (CVX 1170) DEUTZ (5110 , 5105, Agrotron XXX) KUBOTA (M7-153) LANDINI (Vision 100) LAMBORGHINI	36	20.4
K	BELARUS MTZ (824, 1204)	36	17.8
N	MASSEY FERGUSON (6475, 5413, 204, S1304-C, 1004, 1104, 1204, 1304, 8690, 6713S) CLAAS (Axion y2008, 2204, 440) MCCORMICK (MC120, XTX185, ZTX280, MTX) CASE (PUMA145, 185CVX, MX 110) VALTRA (N154) STEYR (6125)	36	15.8 (conical)
B	LOVOL (1004, 900, 1654) WORLD (1304, 2204, 604, 904, 1404, 1604) FOTON (904, 700, 750, LX800, 754, 90, LF904, 1204) YTO (120/130hp)	36	18.2
W	DEUTZ (904, 454, 604, 704, 804, 1204, 1604, 1654) LOVOL （1304, 900, 904, 654, 1204, 1504, 800） FOTON (small ones)	36	18.5
F	VALTRA (2104, 191, 1904, 1504, 8158, T183, T171, N143) ZETOR KIROVETS (K-734) BATEMAN SANDS KNIGHT (SP sprayers) HARDI (Alpha)	single key	24.5
NH40	older ones: NEW HOLLAND (1304, TS100, T5050) CASE (MXM)	40	17.7
T	KUBOTA (594) YANMAR (AC21W, rice transplanter)	18	15.45
G	*RARE:* MASSEY FERGUSON (4365, old ones) CASE & NEW HOLLAND (old, manufactured in the US)	36	15.6
C	CLAAS (Lexion) TUCANO AVERO JAGUAR	single key (conical)	23.33-25.4
BENZ- 72S	MERCEDES (Unimog)	72	23.5
